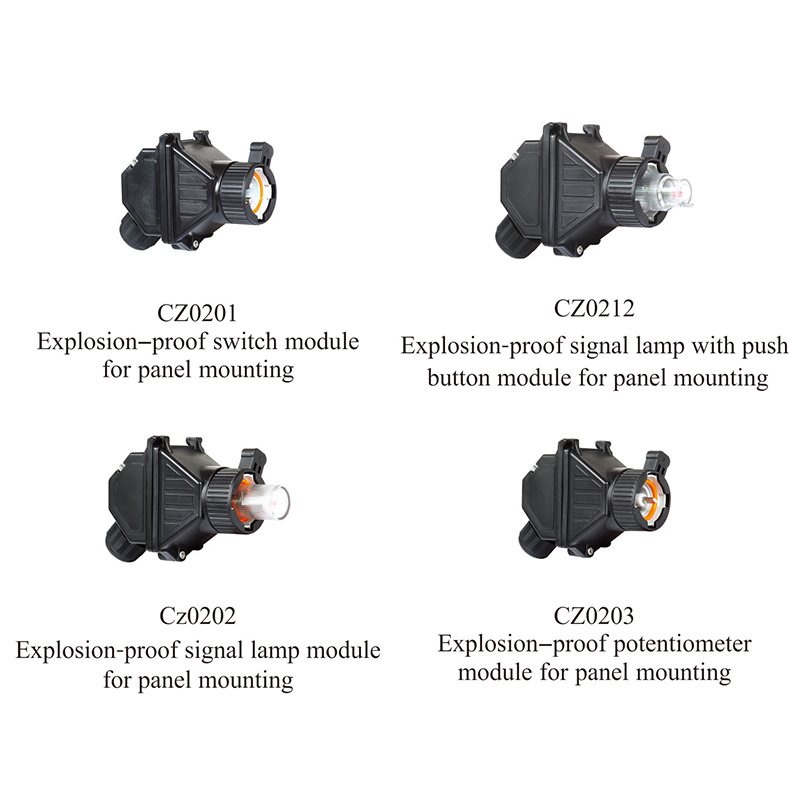

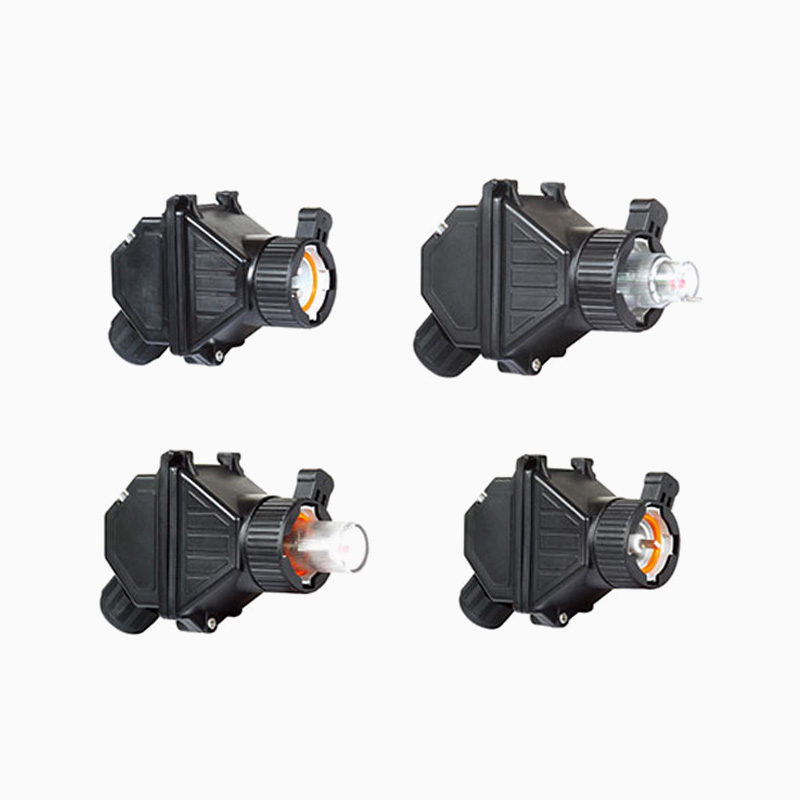

Explosion-proof module for panel mounting

Prodcuts Features:

● The rated current of explosion-proof switches for panel mounting is up to 16A and the mechanical life is 1,000,000 times. There are silver or gold-platead silver contact points for options.
● Explosion-proof signal lamps for panel mounting have high brightness, long life. The electric life is more than 100,000 hours.
● Degree of protection IP66.
● IECEx International Certification, ATEX European Approval.

Product Parameter

Product type:

Explosion-proof module for panel mounting

Certification:

CCC IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2D/Db/zone 21

Min.ambient temperature:

-40℃

Max.ambient temperature:

+50℃

Degree of protection:

IP66  ( Match with operation head )

Terminals:

2×2.5mm²

Cable entry:

Molded plastic 1×M20, cable outer diameter Φ5.5~13mm

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification:
    China: CE18.5079X Ex mark: Ex d e IIC T6 Gb Ex tD A21 IP66 T 80℃
    IECEx: IECEx CQM 13.0018X Ex mark: Ex d e IIC T6 Gb Ex tb IIIC T 80℃ Db
    ATEX: LCIE 14 ATEX 3042X Ex mark: II 2 G D Ex d e IIC T6 Gb Ex tb IIIC T 80℃ Db
    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature: -40℃≤Ta≤+50℃
    Degree of protection: IP66 ( Match with operation head )
    Terminals: 2×2.5mm²
    Cable entry: Molded plastic 1×M20, cable outer diameter Φ5.5~13mm
