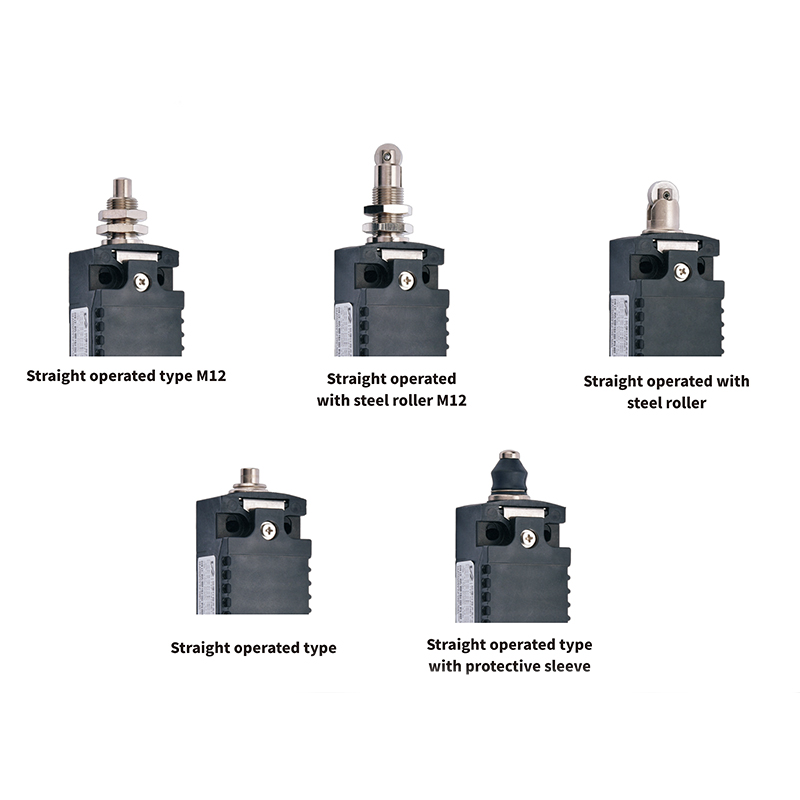

CZ1246 Full plastic explosion-proof position switches

Prodcuts Features:

● Certified built-in Ex component (U-certificate)
● 4 types of contacts( fast-action, slow-action)
● Easy installation
● High chemical performance
● Degree of protection IP66
● IECEx International Approval, ATEX European Approval

Product Parameter

Product type:

Full plastic explosion-proof position switches

Certification:

CCC IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2D/Db/zone 21

Min.ambient temperature:

-20℃

Max.ambient temperature:

+50℃

Degree of protection:

IP66

Rated voltage:

max 320V AC, 250V DC

Rated current:

max 10A

Material of enclosure:

Alloy plastic of static resistance

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification:
    China: CE16.5003X Ex mark: Ex d eⅡC T6 Gb Ex tD A21 IP66 T80℃ (Ie≤6A, Ta≤+50℃);Ex d eⅡC T5 Gb Ex tD A21 IP66 T95℃ (6A<Ie≤10A, Ta≤+40℃)
    IECEx: IECEx CQM 16.0014X Ex mark: Ex db eⅡC T6 Gb Ex tb ⅢC T80℃ Db (Ie≤6A, Ta≤+50℃);Ex db eⅡC T5 Gb Ex tb ⅢC T95℃ Db (6A<Ie≤10A, Ta≤+40℃)
    ATEX: Sira 16ATEX1269X Ex mark: Ⅱ2 GD Ex db ebⅡC T6 Gb Ex tb ⅢC T80℃ Db (Ie≤6A, Ta≤+50℃); Ⅱ2 GD Ex db ebⅡC T5 Gb Ex tb ⅢC T95℃ Db (6A<Ie≤10A, Ta≤+40℃)
    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature: -20℃≤Ta≤+40℃ (6A<Ie≤10A)
    -20℃≤Ta≤+50℃ (Ie≤6A)
    Degree of protection: IP66
    Rated voltage: max 320V AC, 250V DC
    Rated current: max 10A
    Component terminal: 4×0.5 ~ 1.5mm²
    Material of enclosure: Alloy plastic of static resistance
    Cable entry: Molded plastic 1×M20, cable outer diameter Φ5.5~13mm
    Conformity to low voltage electrical standards: IEC60947-5-1、EN60947-5-1
    Utilization category: AC-12、AC-15、DC-12
    Limit short-circuit current: 1kA
    Short-circuit protection: 16A/500V
    Protection: gG(conformity to IEC60269-1, EN60269-1)
