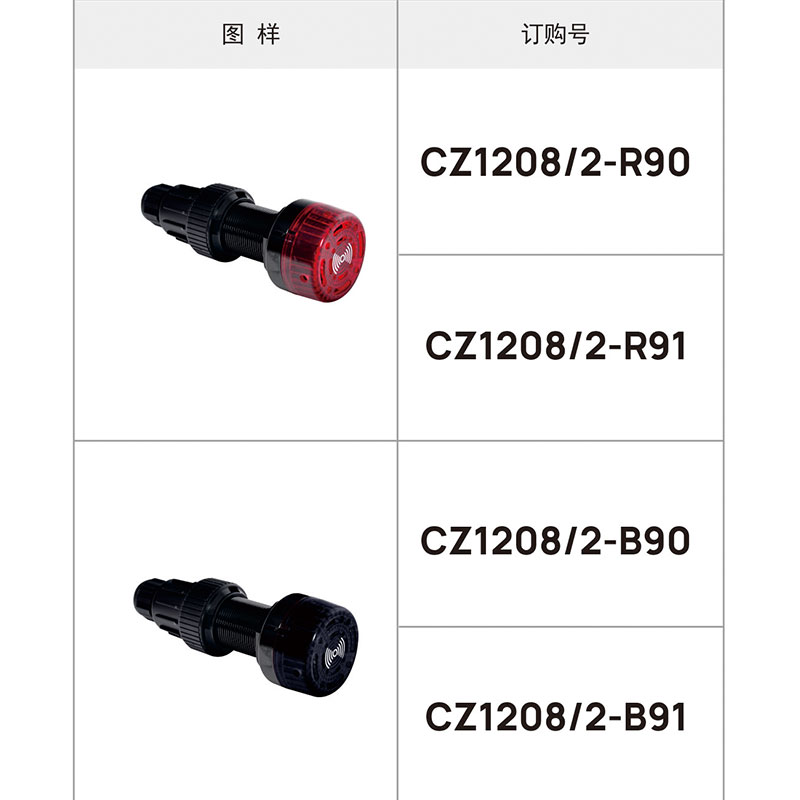

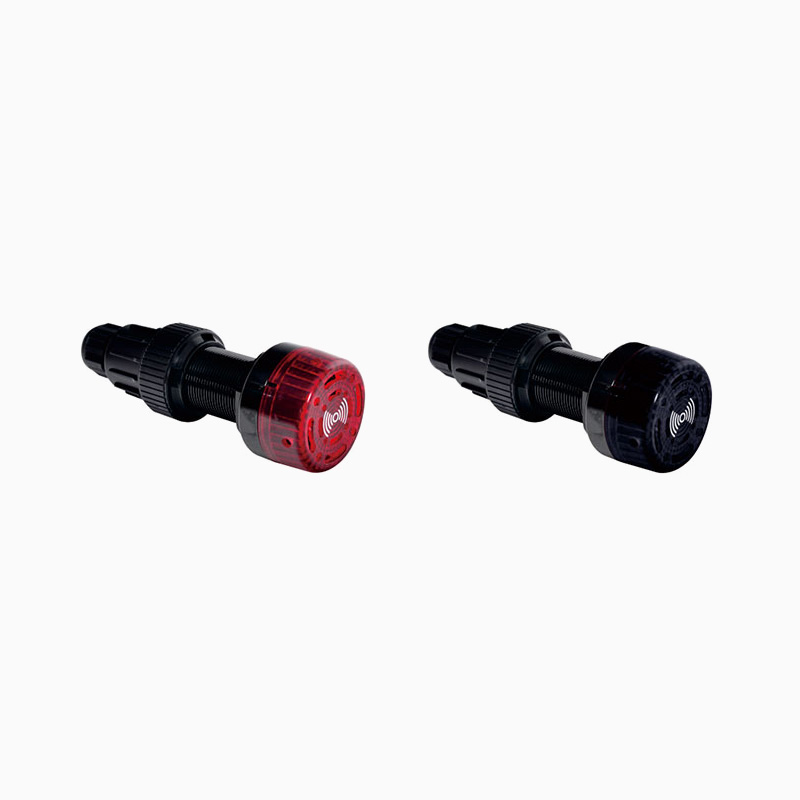

CZ1208/2-9 Explosion-proof (flash) buzzer for panel mounting

Prodcuts Features:

● Buzzers are available in flash or non-flash types.
● Flash types have different flash colors for options.
● Sound pressure is 60Db at 30cm.
● IECEx International Certification, ATEX European Approval.

Product Parameter

Product type：	CZ1208/2-□9□ Explosion-proof (flash) buzzer for panel mounting
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	-40℃
Max.ambient temperature：	+45℃
Degree of protection：	IP66
Rated voltage：	AC/DC10-28V, AC/DC20-250V
Rated Frequency：	50/60Hz
Sound pressure level：	60dB ( at 30cm )
Connection Type：	Terminals 2.5mm²
Material：	polyamide
Cable entry outer diameter：	Φ5.5～13mm

Certification：	China: EETI18.0088X Ex mark: Ex eb ib mb IIC T4 Gb Ex tD A21 IP66 T130℃ IECEx: IECEx EUT 19.0003X Ex mark:Ex eb ib mb IIC T4 Gb Ex tb IIIC T130℃ Db ATEX: EPT 19 ATEX 3084X Ex mark: II 2 G D Ex eb ib mb IIC T4 Gb Ex tb IIIC T130℃ Db
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature:	-40℃≤Ta≤+45℃
Degree of protection:	IP66
Rated voltage :	AC/DC10-28V，AC/DC20-250V
Rated Frequency：	50/60Hz
Sound pressure level:	60dB ( at 30cm )
Connection Type:	Terminals 2.5mm²
Material of enclosure:	polyamide
Cable entry outer diameter：	Φ5.5～13mm
