Prodcuts Features:
● Degree of protection IP66.● IECEx International Certification, ATEX European Approval.
Product type: |

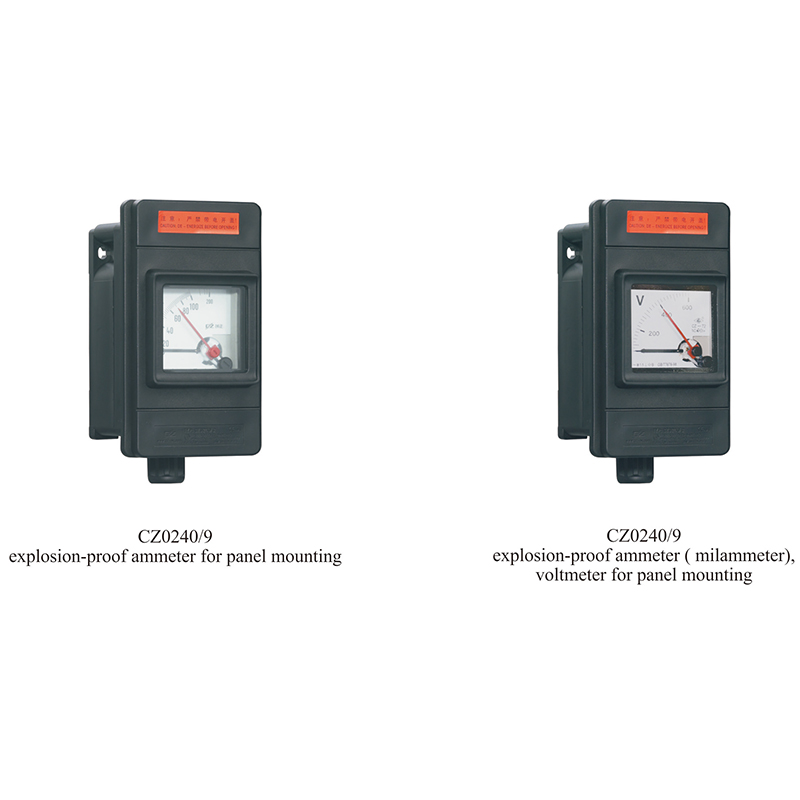

CZ0240/9 Explosion-proof ammeter (milammeter), voltmeter for panel mounting |
Certification: |
CCC IECEX ATEX |
Application range (zones): |
2G/Gb/zone 1;2D/Db/zone 21 |
Min.ambient temperature: |
-40℃ |
Max.ambient temperature: |
+55℃ |
Degree of protection: |
IP66 |
Ammeter framework: |
Electromagnetic |
Accuracy class: |
1.5 |
Overload scale: |
2 times, 5 times |
Terminals: |
2×2.5mm² |
PE terminals: |
4mm² |
Cable entry: |
Molded plastic 1×M20, cable outer diameter Φ5.5~13mm |
Material of enclosure: |
Alloy plastic of static resistance |
Certification: |
China: CE17.5039X Ex mark: Ex eⅡC T6 Gb / Ex e mbⅡC T6 Gb Ex tD A21 IP66 T80℃
IECEx: IECEx CML 17.0025X Ex mark: Ex ebⅡC T6 Gb / Ex eb mbⅡC T6 Gb Ex tbⅢC T 80℃ Db
ATEX: CML 17 ATEX 1040X Ex mark: Ⅱ2 G D Ex ebⅡC T6 Gb / Ⅱ2 G D Ex eb mbⅡC T6 Gb Ex tbⅢC T 80℃ Db
|
Intended use: | Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22 |
Ambient temperature: | -40℃≤Ta≤+55℃ |
Degree of protection: | IP66 |
Ammeter framework: | Electromagnetic |
Accuracy class: | 1.5 |
Terminals: | 2×2.5mm² |
PE terminals: | 4mm² |
Material of enclosure: | Alloy plastic of static resistance |
Cable entry: | Molded plastic 1×M20, cable outer diameter Φ5.5~13mm |
CZ Electric Co., Ltd was established in 1990, is a CZ0240/9 Explosion-proof ammeter (milammeter), voltmeter for panel mounting suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
Founded in 1990
More than 100 international
explosion-proof certifications
Five production modules
More than 120
patents
More than 50 countries
and regions around the world
