CZ1260 Explosion-proof overhaul light fittings/equipment light fittings

Prodcuts Features:

● Optional stainless steel mesh cover.

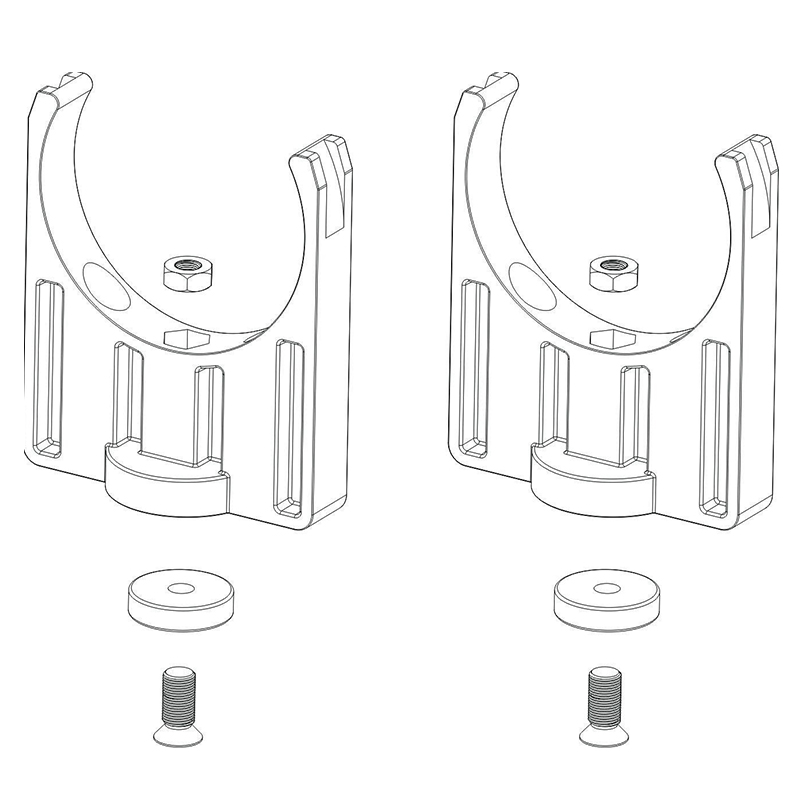

● Optional fixed bracket and fixed bracket with magnet.
● Optional different voltage explosion-proof plug.
● IECEx, ATEX Certification.

Product Parameter

Product type:

overhaul light fittings/equipment light fittings

Certification:

CCC IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2D/Db/zone 21

Min.ambient temperature:

-40℃

Max.ambient temperature:

+55℃

Degree of protection:

IP66 / IP67

Rated voltage:

12-36V AC 50/60Hz 12-48V DC
100-250V AC/DC 50/60Hz
48-110V AC 50/60Hz 70-110V DC

Rated power:

LED 11W ( 615Lm )

Weight:

0.6 ~ 0.76 kg

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification:
    China: CE14.1058X Ex mark: Ex d e IIC T6 Gb;DIP A21 TA, T6 ( Ta≤+40°C );Ex d e IIC T5 Gb;DIP A21 TA, T5 ( Ta≤+55°C )
    IECEx: IECEx TUR 15.0038X Ex mark: Ex d eⅡC T6 Gb;Ex tb ⅢC T80°C Db ( Ta≤+40°C );Ex d eⅡC T5 Gb;Ex tb ⅢC T95°C Db ( Ta≤+55°C )
    ATEX: TUV 15ATEX 7749X Ex mark: II 2GD Ex d eⅡC T6 Gb;Ex tb ⅢC T80°C Db ( Ta≤+40°C ); II 2GD Ex d eⅡC T5 Gb;Ex tb ⅢC T95°C Db ( Ta≤+55°C )
    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature: -20℃≤Ta≤+40℃/+55℃
    -40℃≤Ta≤+40℃/+55℃
    Degree of protection: IP66 (equipment light fittings), IP67 (overhaul light fittings)
    Rated voltage: 12-36V AC 50/60Hz 12-48V DC
    100-250V AC/DC 50/60Hz
    48-110V AC 50/60Hz 70-110V DC
    Rated power: LED 11W
    Luminous flux: 615 Lm
    Terminal: terminal 2 ~ 2.5mm²
    Cable entry: Overhaul light fittings: outside diameter: Φ8-17mm
    Equipment light fittings: moulded plastic 1×M25×1.5
    outside diameter: Φ8-17mm
