CZ0212 Board front mounting rail type, board back type explosion-proof signal lamp with push button module

Prodcuts Features:

● Two available Ex markings: Ex db ebⅡC Gb / Ex ia ⅡC Ga.
● Ex ia module shall be used together with barrier.
● IECEx international certification, ATEX European certification.
● Two low temperature ratings for option -40℃/-55℃
● Signal lamp with button has contact 1NC or 1NO and signal lamp element inside.
● Wide voltage design, four voltage ratings for option
● Inside with temperature switch protection
● Long life LED light source

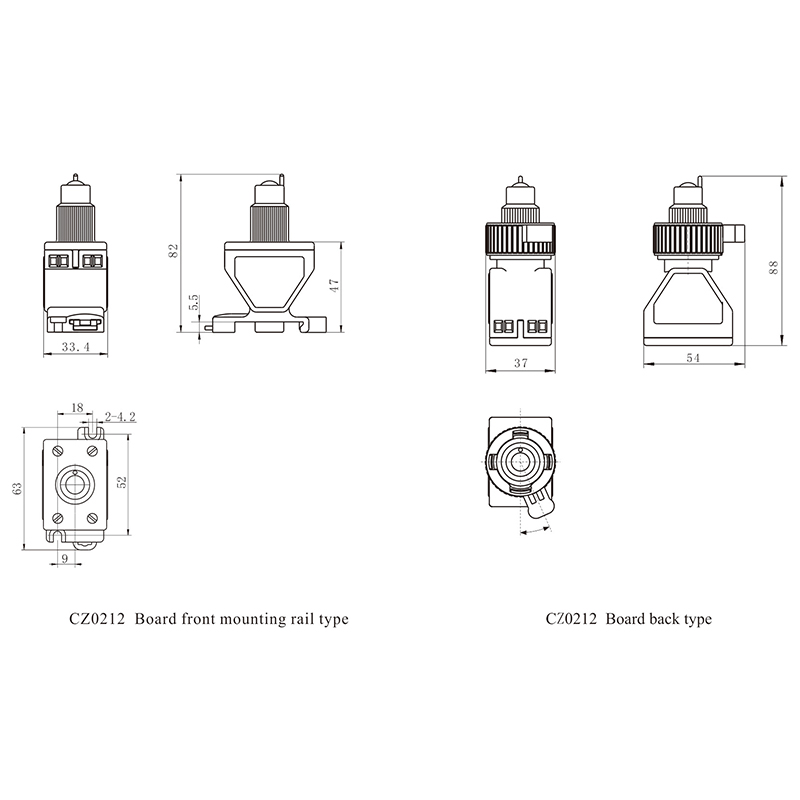

● Mounting: board front rail type (on rail or screw fixation)
  board back type (on panel)

Product Parameter

Product type:

Board front mounting rail type, board back type explosion-proof signal lamp with push button module

Certification:

CCC IECEX ATEX

Application range (zones):

2G/Gb/zone 1

Min.ambient temperature:

-55℃

Max.ambient temperature:

+60℃

Min.service temperature:

-55℃

Max.service temperature:

+90℃

Degree of protection:

IP20

Terminals:

2×2.5mm²

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification:
    China: CE18.5092U Ex mark: Ex d eⅡC Gb / Ex iaⅡC Ga
    IECEx: IECEx CQM 11.0034U Ex mark: Ex db ebⅡC Gb / Ex iaⅡC Ga
    ATEX: (DNV) Presafe 16 ATEX 9083U Ex mark: Ⅱ2G Ex db ebⅡC Gb / Ex iaⅡC Ga
    Intended use: Can be used in zone 0(Ex ia) ,zone 1 and zone 2
    Ambient temperature: -55℃/-40℃≤Ta≤+60℃ ( -55℃Optional )
    -55℃≤Ta≤+55℃ ( Ex ia )
    -55℃/-40℃≤Ta≤+50℃ ( 380V ~ 400V AC ) ( -55℃Optional )
    Service temperature: -55℃/-40℃ to +90℃ ( -55℃ Optional )
    Degree of protection: IP20
    Terminals: 2×2.5mm²
    Conformity to: IEC/EN 60947-1、IEC/EN 60947-5-1
    Button: Rated voltage/Rated current: AC/DC 30V 100mA ( Ex ia )
    AC 250V/10A DC24V/1A ( Ex db ebⅡC )
    Utilization category: AC-15、DC-13
    Short-circuit protection: 16A / 500V
    Protective characteristic: gG ( conformity to IEC / EN60269-1 )
    Mechanical life: 300 thousand times
    Signal lamp: rated voltage: 10V - 28V AC/DC( Ex ia );10V - 28V AC/DC、20V - 250V AC/DC、100V - 277V AC/DC ( Ex db ebⅡC )
    Light source: LED
    Power dissipation: Pmax≤1W
    Board front rail mounting: on TS35×7.5 rail or screw fixation
    Board back mounting: on 1~6mm panel
    Weight ( board front rail type ): 0.074kg
    Weight ( board back type ): 0.083kg
