CZ1865、CZ1866 Explosion-proof(emergency)LED tubular light fittings

Prodcuts Features:

● Full plastic explosion-proof(emergency)LED linear light fittings mounting ways: ceiling type, chain type, rod pendant type, wall type and clamp type.

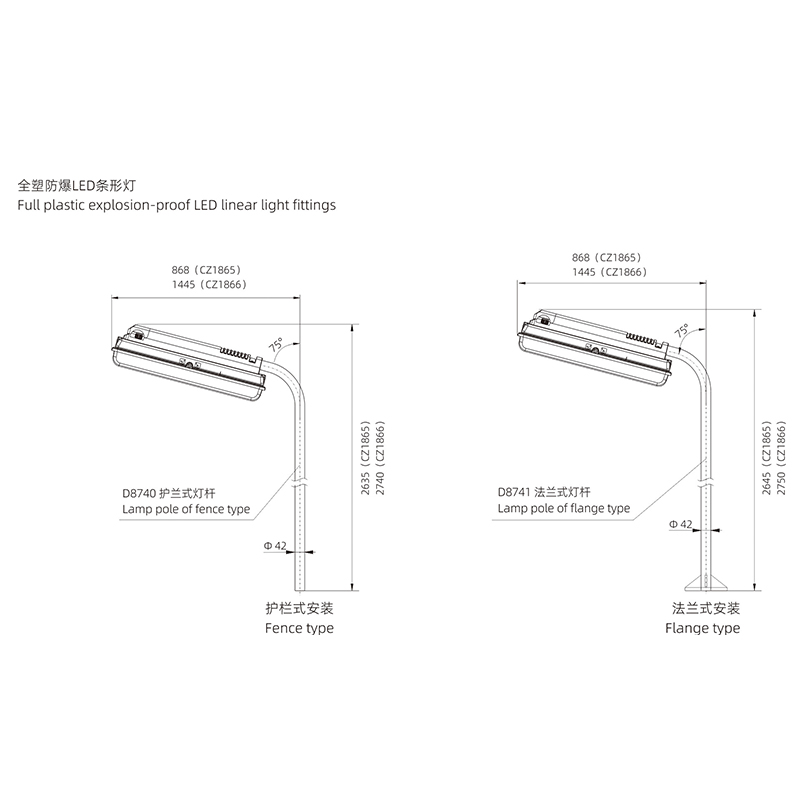

● Full plastic explosion-proof(emergency)LED linear light fittings(pole mounting)mounting ways: Platform type, Wall type.
● With interlock device, it can't power on when transparent part and enclosure are not closed well.
● Emergency lighting have indicators of fault, charging and discharging.
● LED light source module has two optical design, and the luminous angle is 55° and 110°.
● The LED power supply come with the protective functions of over temperature, over voltage and short circuit.
● The structural design is never distortion and its protection degree is up to IP66.
● IECEx and ATEX certified.
● Customized high light efficiency light source whose light efficiency ≥ 135lm/w(Meet China's first-class energy efficiency standards)
● LED linear light fittings are equipped with 0-10V dimming device.

Product Parameter

Product type:

Explosion-proof(emergency)LED tubular light fittings

Certification:

China IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2D/Db/zone 21

Min.ambient temperature:

T6:T5:-40℃

Max.ambient temperature:

T5:+40℃  T4:+55℃

Degree of protection:

IP66(IP64 with breather CZ0527)

Rated voltage:

AC100 ~ 250V 50/60Hz、DC 100~250V

Dimming range:

10% - 100%, Lighting can be turn off

Isolated:

0-10V dimming

Color temperature:

Standard 5000K,(Optional 3000K,4000K,6500K)

Color rendering index:

Ra≥80

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification: China:Ex db eb mb q IIC T5/T4 Gb    Ex tb IIIC T80°C Db

    IECEx: Ex db eb mb q IIC T5/T4 Gb    Ex tb IIIC T80°C Db

    ATEX:    II 2GD  Ex db eb mb q IIC T5/T4 Gb     Ex tb IIIC T80°C Db
    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature: -40℃≤Ta≤+40℃(T5)
    -40℃≤Ta≤+55℃(T4)
    Degree of protection: IP66(IP64 with breather CZ0527)
    Rated voltage: 100~250V AC  50/60Hz,100~250V DC
    Color temperature: Standard 5000K, (Optional 3000K,4000K,6500K)
    Power factor/ low harmonic:   λ>0.95, <15%
    Terminals: L1, L2, L, N, PE, each terminal 2×1.5-10mm²
    Cable entry:  Standard M25(Optional M20)Standard type:
    Moulded plastic 1-M25×1.5 cable gland, outside diameter of cable: Φ9-17mm
    Moulded plastic 2-M25×1.5 stopping plugs

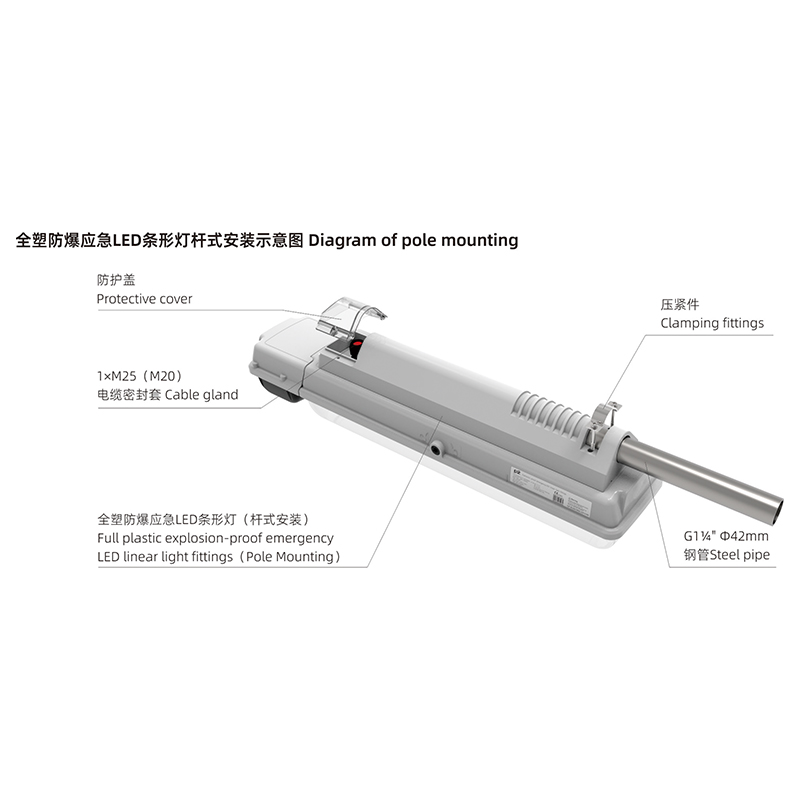

    Pole mounting:
    Moulded plastic 1-M25×1.5 cable gland, outside diameter of cable: Φ9-17mm
    Emergency illuminating time:  >180 min
    Battery discharge ambient temperature:  -20℃ ~ +70℃
