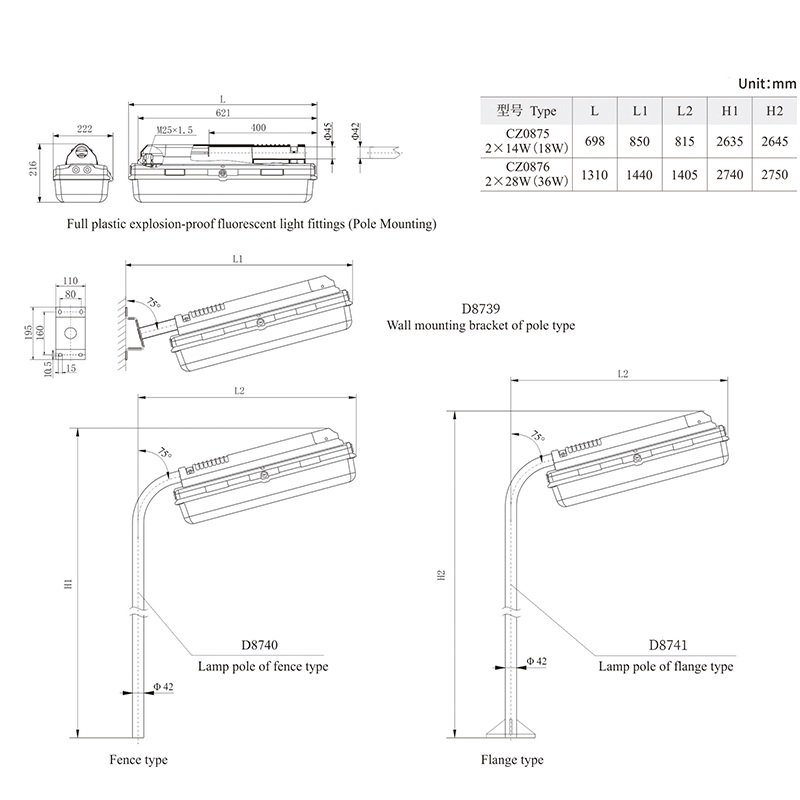

CZ0875/0876 Full plastic explosion-proof fluorescent light fittings(Pole Mounting)

Prodcuts Features:

● Full plastic explosion-proof fluorescent light fittings are available in mounting: ceiling type, chain type, pendant type, wall type or clamp type.
● Full plastic explosion-proof fluorescent light fittings (pole mounting) are available in mounting: platform fence type, platform flange type, wall type.
● Explosion-proof isolation switch and explosion-proof fuse are optional.
● With trichromatic lamp tubes inside to have high luminous efficiency and long life.
● The structural design is never distortion and its protection degree is up to IP66.
● IECEx and ATEX certified.

Product Parameter

Product type：

Full plastic explosion-proof fluorescent light fittings(Pole Mounting)

Certification：

CCC IECEX ATEX

Application range (zones)：

3G/Gc/zone 2；2D/Db/zone 21

Min.ambient temperature：

T83℃：-25℃

Max.ambient temperature：

T83℃：+50℃

Degree of protection：

IP66

Rated voltage：

220-240V AC    50/60Hz

Energy efficiency index ：

EEI=A2

Power factor：

λ＞0.95
Get a quote
  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification：

    China: CE16.5043X Ex mark: Ex nA II C T4 Gc Ex tD A21 IP66 T80°C （Product without fuse or switch fitted）
    Ex nA d e mb II C T4 Gc Ex tD A21 IP66 T80°C （Product with fuse and switch fitted）

    IECEx: CQM 12.0001 Ex mark:Ex nA II C T4 Gc Ex t IIIC T80°C Db (Product without fuse or switch fitted)
    Ex nA d mb II C T4 Gc Ex t IIIIC T80°C Db (Product with fuse and switch fitted)

    ATEX: DNV 12 ATEX 11185X Ex mark: II 3G2D Ex nA II C T4 Gc Ex t IIIC T80°C Db (Product without fuse or switch fitted)
    II 3G2D Ex nA d mb II C T4 Gc Ex t IIIC T80°C Db (Product with fuse and switch fitted)
    Intended use: Can be used in zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature: -25℃≤Ta≤50℃
    Degree of protection: IP66
    Rated voltage： 220-240V AC 50/60Hz
    Energy efficiency index： EEI=A2
    Power factor： λ＞0.95
    Terminals: L、N、PE, each terminal 2×1.5-10mm²
    Cable entry： Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm
    Moulded plastic 2×M25×1.5 stopping plugs

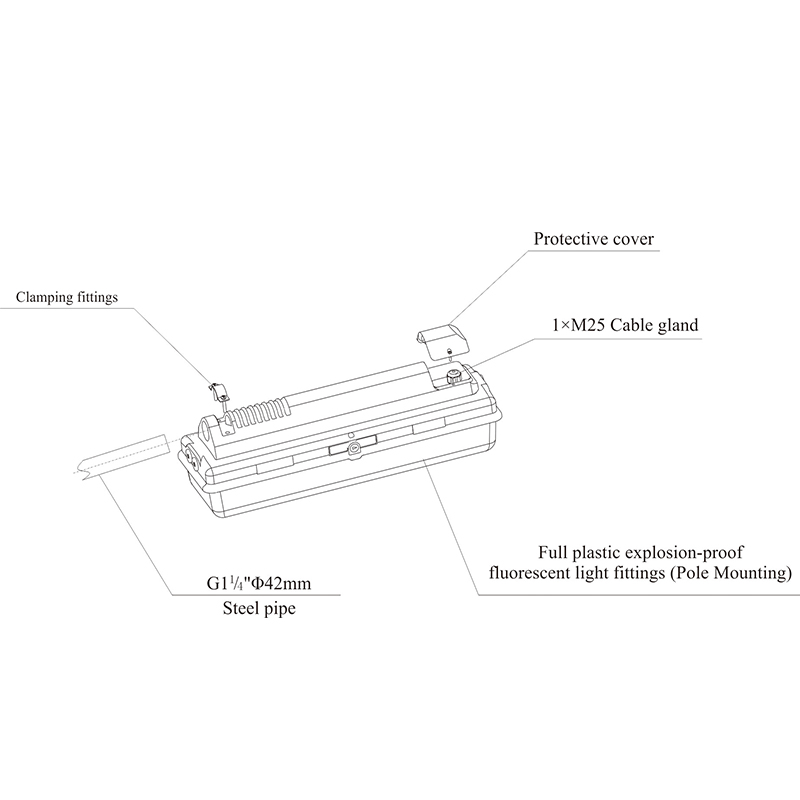

    Pole mounting:Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm
