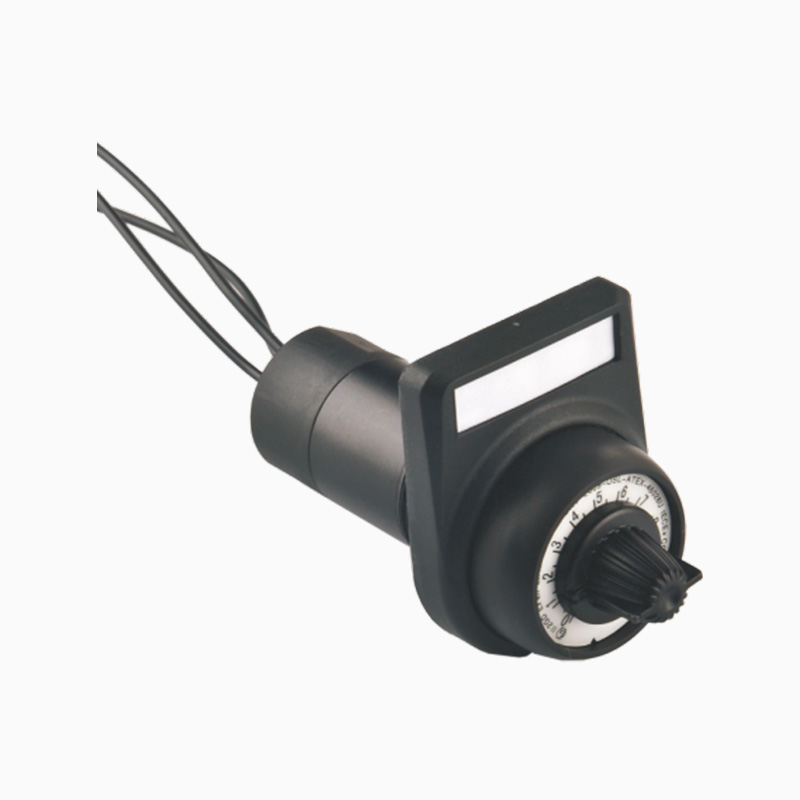

CZ2000-1-BP7 Exd flame-proof potentiometer module

Prodcuts Features:

● CZ2000/1-BA7 Switch modules have 2P or 4P for options, can be used togther with 11 different operation heads (pushbuttons,switches, key operated switches, E-stop pushbuttons).
● CZ2000/1-BB7 control switch module, available in 2P~12P control functions.
● CZ2000/1-BD7 Signal lamp module, LED light source, four voltage ratings, five colors in red, green, yellow, white, blue are available.
● CZ2000/1-BG7 Light-control switch module, can be applied to Ex d or Ex e enclosure.
● CZ2000/1-BP7 Flameproof potentiometer module, 100Ω~2MΩ, Max 0.1W.
● CZ2000/1-B□ switch handle, to operate the switch modules 63A,100A, 250A, 400A, 630A from the front. or to operate the switch modules 100A, 250A from the side.
● CZ2000/1-BW7 observation window for instruments φ64mm,φ89mm.
● CZ2000/1-BI7 observation and operation window for instruments, window have four sizes.
● CZ2000/2A Flameproof cable bushing, thread size M16 to M80,conductor size 0.5mm2-120mm2.
● CZ2000/2B Flameproof cable bushing, thread M50, conductor size 0.5mm2-120mm2, to be used for the connection of two Ex d enclosures.
● CZ2000/3 Flameproof binding pillar, thread M42, wiring capacity 50mm2-240mm2.
● International IECEx approval, European union ATEX certifications (U).
● Accessories: special spanner, label, safety latch.

Product Parameter

Product type:

Ex d flame-proof potentiometer module

Certification:

IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2Db/Db/zone 21

Min.ambient temperature:

-55℃

Max.ambient temperature:

+60℃

Min.service temperature:

-55℃

Max.service temperature:

+80℃

Degree of protection:

IP66

Rated voltage:

max. 200VDC input or rated power which one is lower

Rated power:

0.1W

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification: IECEx: Under approval Ex mark: Ex dbⅡC Gb;Ex tb ⅢC Db

    ATEX: Sira 18ATEX1189U Ex mark: Ⅱ2G Ex dbⅡC Gb;Ex tb ⅢC Db
    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature use: -55℃≤Ta≤+60℃
    Service temperature: -55℃ ~ +80℃
    Degree of protection: IP66
    Rated voltage: max. 200VDC input or rated power which one is lower
    Rated power: 0.1W
    Scale: 0 ~ 100%

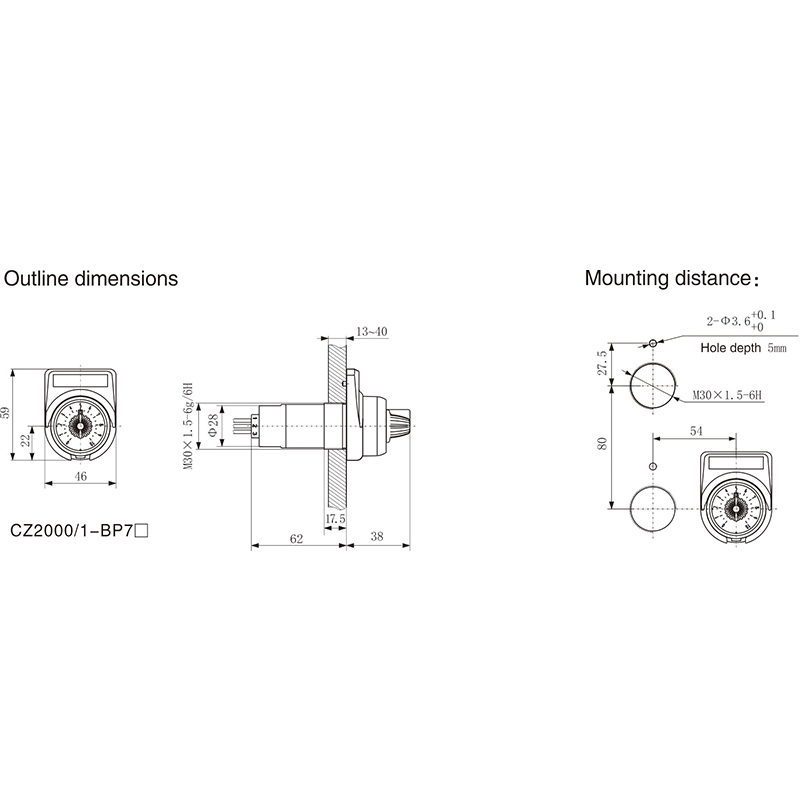

    Flameproof thread: M30×1.5
    Tightening torque: 8 N.m
    Terminal: conductor1m( 3×0.75mm²)
