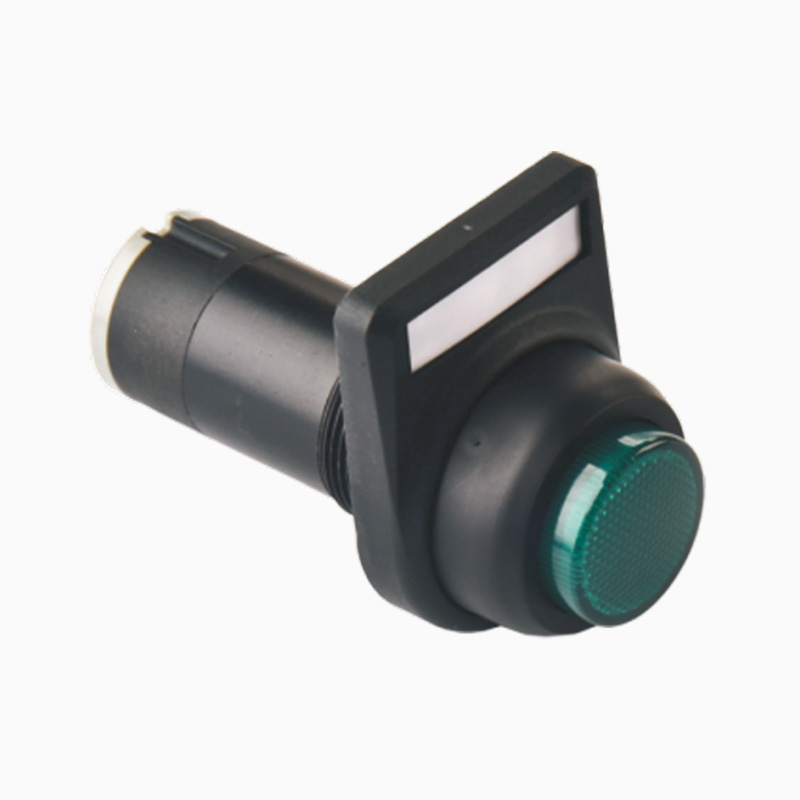

CZ2000-1-BD7 Exd flameproof signal lamp moudle

Prodcuts Features:

● CZ2000/1-BA7 Switch modules have 2P or 4P for options, can be used togther with 11 different operation heads (pushbuttons,switches, key operated switches, E-stop pushbuttons).
● CZ2000/1-BB7 control switch module, available in 2P~12P control functions.

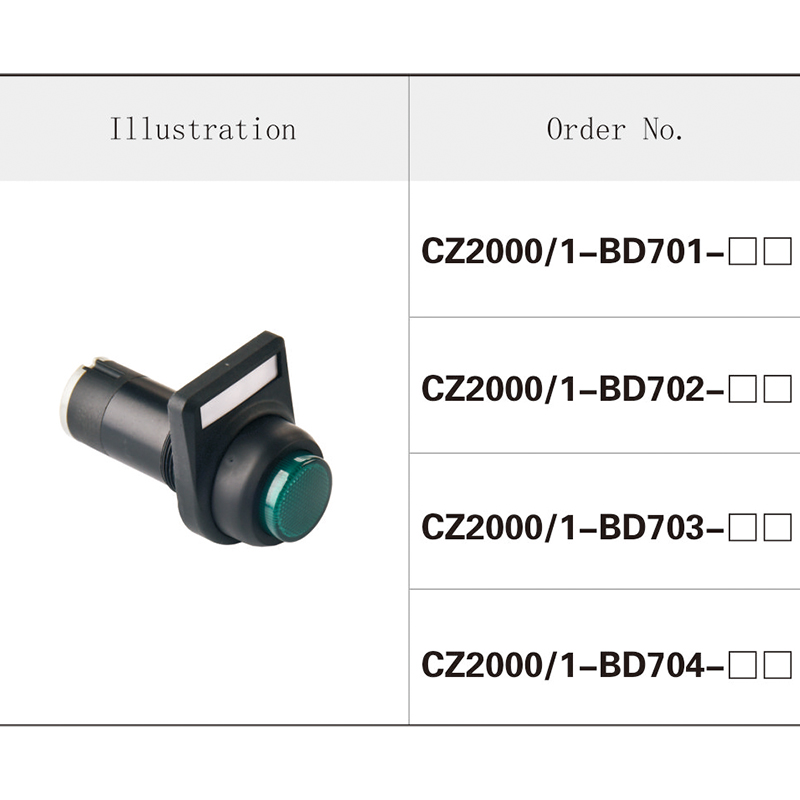

● CZ2000/1-BD7 Signal lamp module, LED light source, four voltage ratings, five colors in red, green, yellow, white, blue are available.
● CZ2000/1-BG7 Light-control switch module, can be applied to Ex d or Ex e enclosure.
● CZ2000/1-BP7 Flameproof potentiometer module, 100Ω~2MΩ, Max 0.1W.
● CZ2000/1-B□ switch handle, to operate the switch modules 63A,100A, 250A, 400A, 630A from the front. or to operate the switch modules 100A, 250A from the side.
● CZ2000/1-BW7 observation window for instruments φ64mm,φ89mm.
● CZ2000/1-BI7 observation and operation window for instruments, window have four sizes.
● CZ2000/2A Flameproof cable bushing, thread size M16 to M80,conductor size 0.5mm2-120mm2.
● CZ2000/2B Flameproof cable bushing, thread M50, conductor size 0.5mm2-120mm2, to be used for the connection of two Ex d enclosures.
● CZ2000/3 Flameproof binding pillar, thread M42, wiring capacity 50mm2-240mm2.
● International IECEx approval, European union ATEX certifications (U).
● Accessories: special spanner, label, safety latch.

Product Parameter

Product type：	Exd flameproof signal lamp moudle
Certification：	IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2Db/Db/zone 21
Min.ambient temperature：	-55℃
Max.ambient temperature：	+60℃
Min.service temperature：	-55℃
Max.service temperature：	+80℃
Degree of protection：	IP66
Light source/power consumption：	LED / Pmax≤1W
Electric life：	50000h

Certification：	IECEx: Under approval Ex mark: Ex dbⅡC Gb；Ex tb ⅢC Db ATEX: Sira 18ATEX1189U Ex mark: Ⅱ2G Ex dbⅡC Gb；Ex tb ⅢC Db
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature use:	-55℃≤Ta≤+60℃
Service temperature：	-55℃ ~ +80℃
Degree of protection:	IP66
Light source/power consumption:	LED / Pmax≤1W
Electric life：	50000h

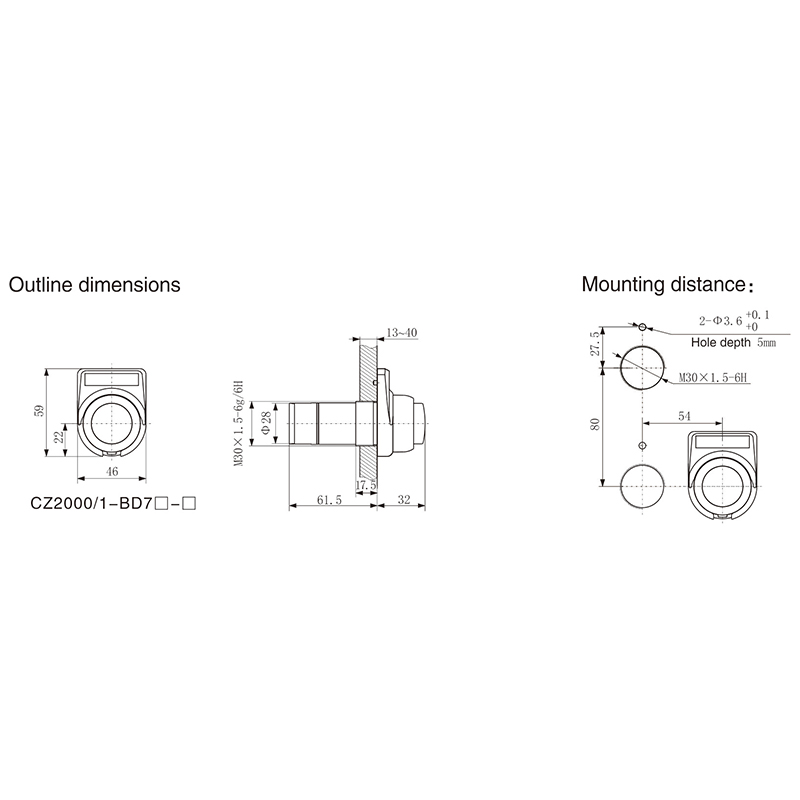

Flameproof thread：	M30×1.5
Tightening torque：	8 N.m
Terminal：	2×2.5mm²
