Prodcuts Features:
● Padlockable handle.● Black handle is standard version, Red/Yellow handle is emergency stop version.
● Degree of protection IP66.
● CCC&CE certification.
Product type: |

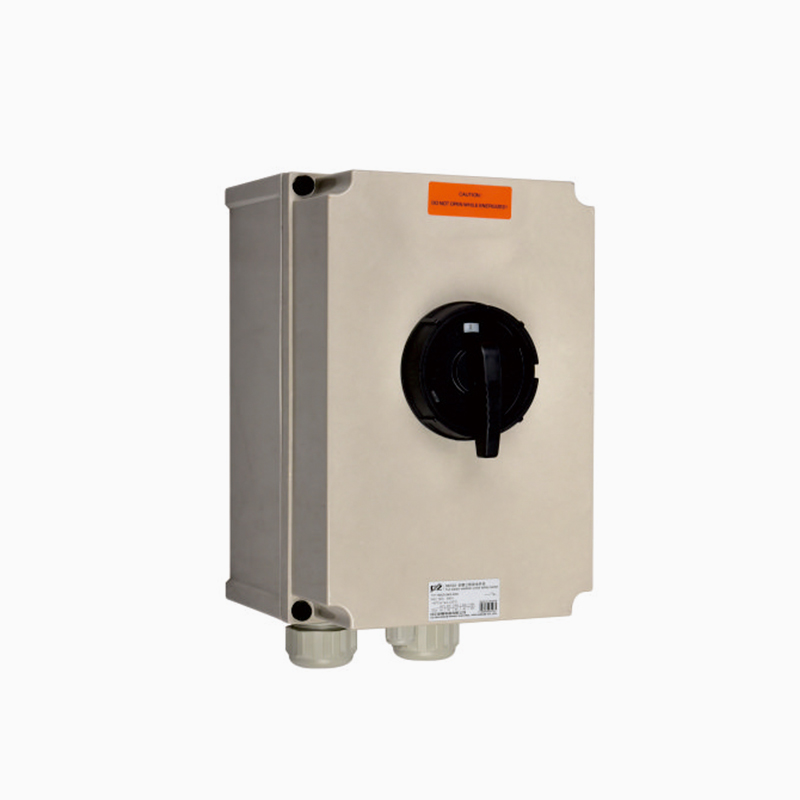

63/80A Industrial load isolation switch |
Certification: |
CCC CE |
Corrosion-proof mark: |
WF2 |
Min.ambient temperature: |
-55℃ |
Max.ambient temperature: |
+55℃ |
Degree of protection: |
IP66 |
Rated current: |
Max to 80A |
Material of enclosure: |
GRP( glass fibre reinforced polyester SMC ) |
Certification: |
China Ex mark: CCC |
Corrosion-proof mark: |
WF2 |
Ambient temperature: |
-55℃≤Ta≤+55℃ |
Degree of protection: |
IP66 |
Rated current: |
Max to 80A |
Terminal: |
1×35mm² |
Utilization category: |
AC-23, AC-3 |
Capacity of switch: |
230V 80A 400V 80A |
Rated insulation voltage (Ui): |
800V |
Rated impulse withstand voltage ( Uimp ): |
6kV |
Rated short-time withstand current ( Icw ): |
10kA |
Rated short-time marking capacity ( Icm ): |
17kA |
Short-circuit protection of fuse: |
500V/160A |
Protection characteristic of fuse: |
gG ( conformity to IEC/EN60269-1 ) |
Material of enclosure: |
GRP( glass fibre reinforced polyester SMC ) |
