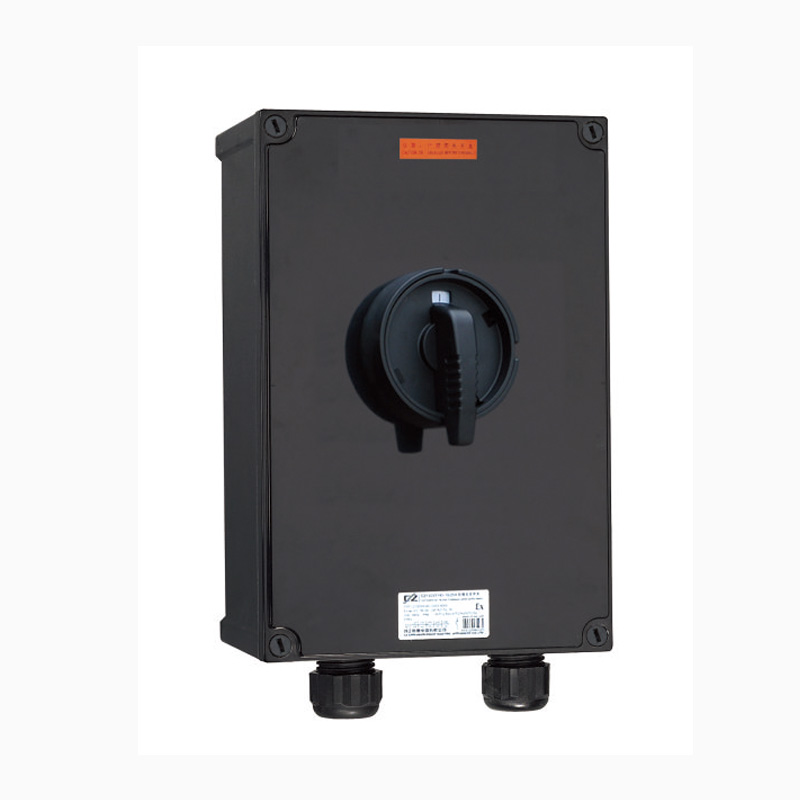

Prodcuts Features:
● Padlockable handle.● Black handle is standard version, Red/Yellow handle is emergency version.
● Degree of protection IP66.
● IECEx International Approval, ATEX European Approval.
| Certification： |
China: CE18.5062X Ex mark: Ex d eⅡC T6/T5 Gb Ex tD A21 IP66/IP65 T80℃/T95℃
IECEx: IECEx CML 17.0044X Ex mark: Ex db eb ⅡC T6/T5 Gb Ex tb ⅢC T80℃/T95℃ Gb
ATEX: CML 17 ATEX 3104X Ex mark: Ⅱ2GD Ex db eb ⅡC T6/T5 Gb Ex tb ⅢC T80℃/T95℃ Gb
|
| Intended use: | Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22 |
| Ambient temperature: | -40℃≤Ta≤+40℃/+55℃ |
| Degree of protection: | IP66 / IP65 |
| Rated current: | Max to 80A |
| Terminal： | 1×35mm² |
| Conformity to electrical standards： | IEC/EN 60947-1、IEC/EN 60947-3 |
| Utilization category： | AC-23、AC-3 |
| Capacity of switch： | 230V 80A 400V 80A 500V 80A 690V 63A |
| Rated insulation voltage (Ui)： | 800V |
| Rated impulse withstand voltage ( Uimp )： | 6kV |
| Rated short-time withstand current ( Icw )： | 10kA |
| Rated short-time marking capacity ( Icm )： | 17kA |
| Short-circuit protection of fuse： | 500V/160A |
| Protection characteristic of fuse: | gG ( conformity to IEC/EN60269-1 ) |
| Material of enclosure: | GRP ( Anti-static glass fibre reinforced polyester SMC ) |
