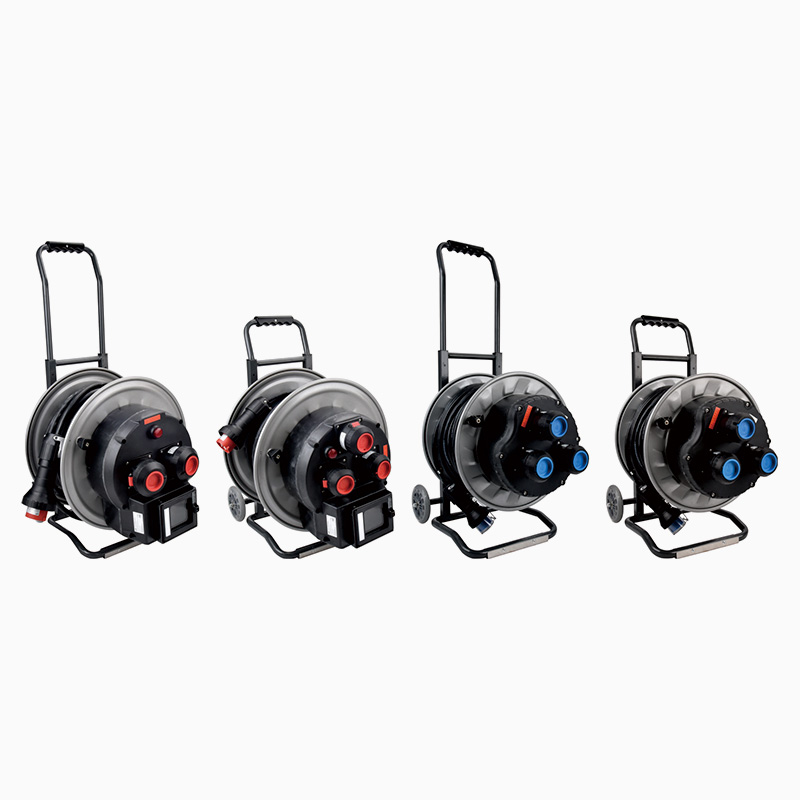

CZ0550 Explosion-proof mobile cable wheel ( with circuit breaker, with transformer )

Prodcuts Features:

● Plug, socket and built-in explosion-proof component are separately IECEx and ATEX certified.
● Cable wheel can be hand held or moved with a pull or push. Extendible handle is easy to use.
● Besides the current solutions we have, other solutions can be on request.
● Degree of protection up to IP66

Product Parameter

Product type：	Explosion-proof mobile cable wheel ( with circuit breaker, with transformer )
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	-40℃
Max.ambient temperature：	+55℃
Degree of protection：	IP66
Rated current：	16A, 32A
Rated voltage：	AC 20 ~ 690V 50/60Hz
Material of enclosure：	cable wheel bracket is made of shaped steel, surface with plastic spray treatment. Socket box is made of GRP anti-static glass fibre reinforced polyester (SMC)

Certification：	China: CNEx16.0654X Ex mark: Ex d e IIC T6/T5 Gb Ex tD A21 IP66 T80℃/T95℃ Ex d e IIC T4 Gb Ex tD A21 IP66 T130℃ ( With transformer ) IECEx: Under approval Ex mark: Ex db eb IIC/IIB T6/T5/T4 Gb Ex tD ⅢC T80℃/T95℃/T130℃ ATEX: Under approval Ex mark: Ⅱ2GD Ex db eb IIC/IIB T6/T5/T4 Gb Ex tD ⅢC T80℃/T95℃/T130℃
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature use:	-20℃≤Ta≤+40℃/+55℃ ( IIC ) -40℃≤Ta≤+40℃/+55℃ ( IIB )
Degree of protection:	IP66

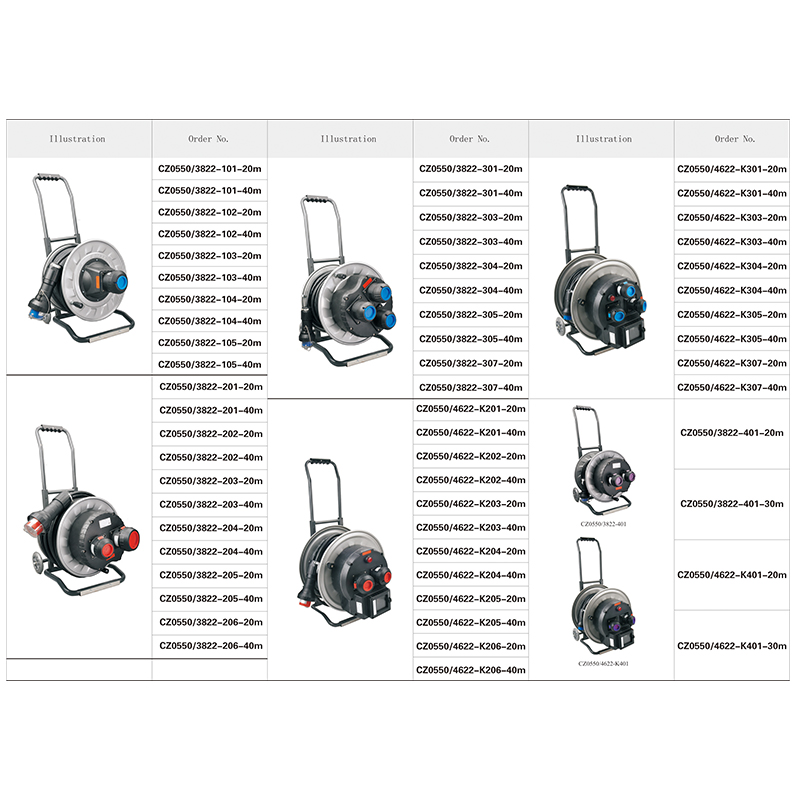

Plug：	CZ0251-16A/3P、4P、5P CZ0252-32A/4P、5P
Socket：	CZ0251-16A/2P、3P、4P、5P CZ0252-32A/4P、5P
Rated current：	16A、32A
Rated voltage：	AC 20 ~ 690V 50/60Hz

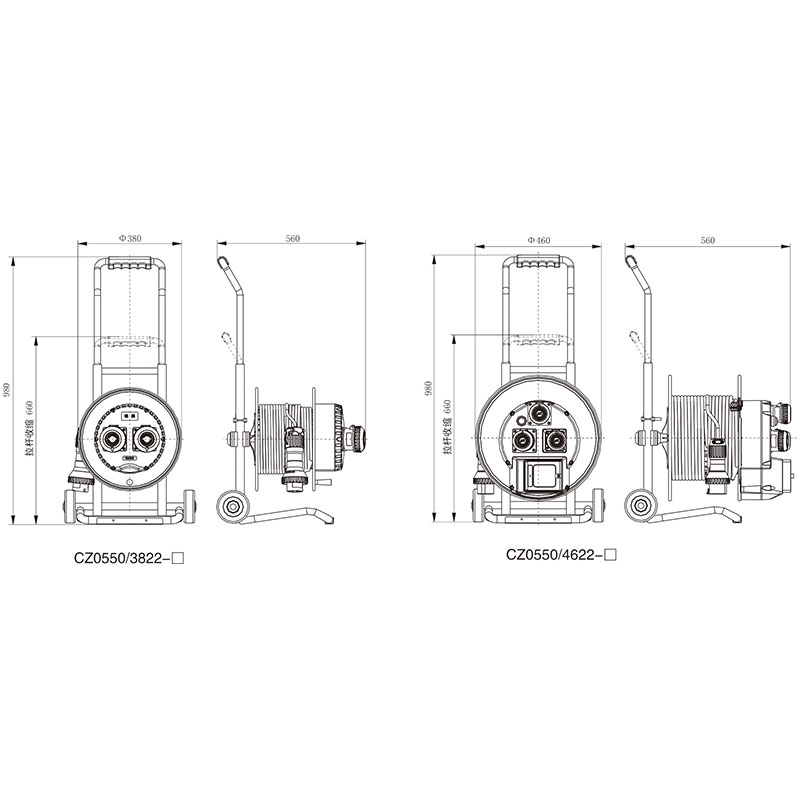

Cable wheel diameter:	two options, Φ380mm or Φ460mm
Explosion-proof mobile cable wheel (with circuit breaker, with transformer) Main switch: explosion-proof (leakage) circuit breaker CZ0511-BLD
Max. Current：	40A
Rated residual operating current：	10、30、300mA
Rated breaking capacity：	6kA、10kA
Tripping characteristic：	curve C, D
Explosion-proof mobile cable wheel (with transformer) CZ0516-eBK-100VA Increased safety control transformer module
Material of enclosure：	cable wheel bracket is made of shaped steel, surface with plastic spray treatment. Socket box is made of GRP anti-static glass fibre reinforced polyester (SMC)
