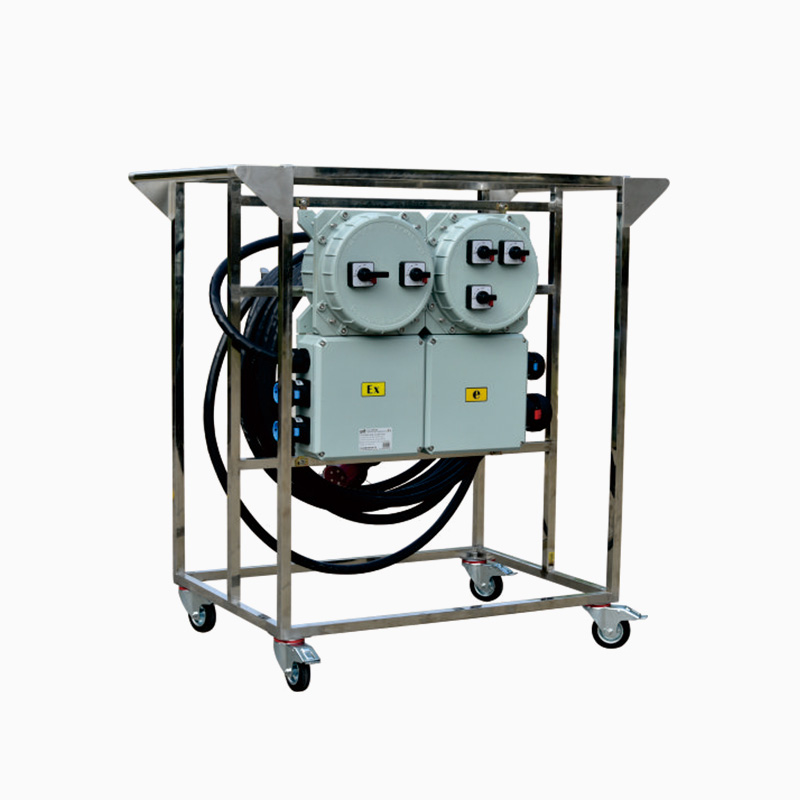

CE90 Explosion-proof distribution panel (Moveable)

Prodcuts Features:

● The distribution box could be portable or movable, which is easy to use.
● Equipped with electrically conductive thermoplastic rubble wheels (remove static electricity)
● Besides available standard configuration, also could do customization based on requirements.
● Degree of protection up to IP65/IP66
● IECEx International Approval, ATEX European Approval.

Product Parameter

Product type：	Explosion-proof distribution panel ( Moveable)
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	-20℃
Max.ambient temperature：	+55℃
Degree of protection：	IP66
Rated voltage：	220/230V, 380/400V
Rated current：	63A
Frequency：	50/60Hz
Material of enclosure：	aluminum-alloy
Material of moveable trolley：	SS 304

Certification：	China: CNEx16.0812 Ex mark: Ex d e ⅡC T4 Gb / Ex tD A21 IP66 T130℃ IECEx: IECEx CML 18.0063X Ex mark: Ex db eb ia/ib mb IIB+H2 T6,T5,T4 Gb Ex tb IlIC T80℃,T95℃,T130℃ Db ATEX: CML 18ATEX 1116X Ex mark: Ⅱ2G Ex db eb ia/ib mb IIB+H2 T6,T5,T4 Gb Ex tb IlIC T80℃,T95℃,T130℃ Db
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature:	-20℃≤Ta≤+40℃/+55℃
Degree of protection:	IP66
Rated voltage：	220/230V, 380/400V
Rated current：	63A
Frequency：	50/60Hz
Connection cable:	20m(5×25mm²) Plug63A/5P/6h
Material of enclosure:	aluminum-alloy
Material of moveable trolley:：	SS 304
Weight：	78Kg
