Prodcuts Features:
● Degree of protection IP66.● The exposed fasteners are made of Stainless steel exposed fasteners.
● Pure epoxy resin coated.
● Can be operated on the panel or remotely.
● IECEx International Approval, ATEX European Approval
Product type: |

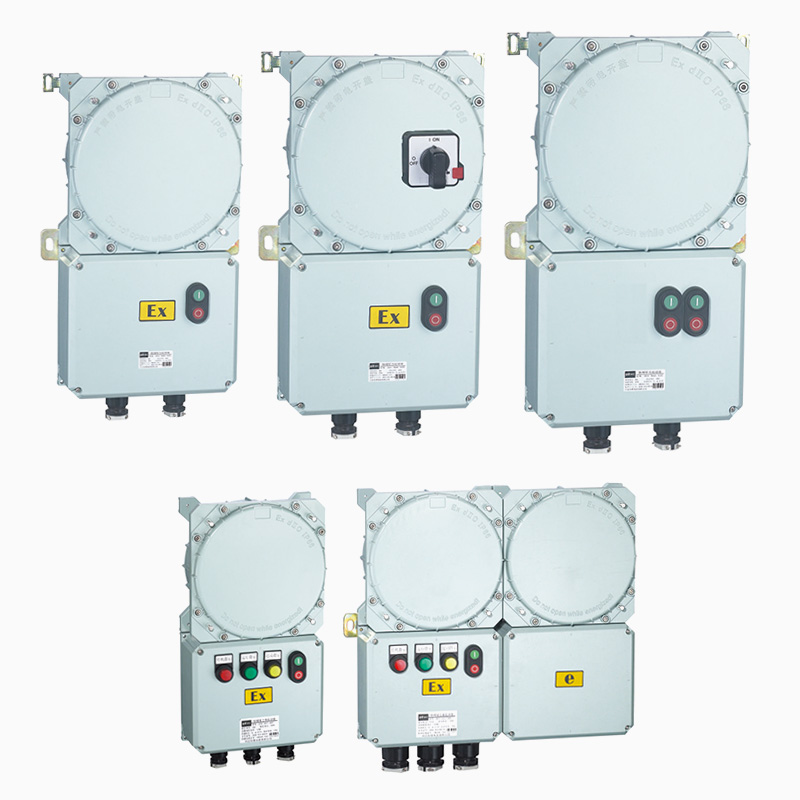

Explosion-proof distribution boxes(electromagnetic starters) |
Certification: |
CCC IECEX ATEX |
Application range (zones): |
2G/Gb/zone 1 |
Min.ambient temperature: |
-20℃ |
Max.ambient temperature: |
+55℃ |
Protection degree: |
IP66 |
Rated voltage: |
up to 690V |
Rated current: |
up to 63A |
Material of enclosure: |
aluminum-alloy enclosure and electrostatic powder coated |
Certification: |
China: CNEx16.0812 Ex mark: Ex d e ⅡC T4 Gb / Ex tD A21 IP66 T130℃
IECEx: IECEx CML 18.0063X Ex mark: Ex db eb ia/ib mb IIB+H2 T6,T5,T4 Gb Ex tb IlIC T80℃,T95℃,T130℃ Db
ATEX: CML 18ATEX 1116X Ex mark: Ⅱ2G Ex db eb ia/ib mb IIB+H2 T6,T5,T4 Gb Ex tb IlIC T80℃,T95℃,T130℃ Db
|
Intended use: | Can be used in zone 1 and zone 2 |
Ambient temperature: | -20℃≤Ta≤+40℃/+55℃ |
Protection degree: | IP66 |
Rated voltage: | up to 690V |
Rated current: | up to 63A |
Coil voltage: | AC 24V、36V、48V、110V、220V ... 440V ( 50/60Hz ) |
Material of enclosure: | GRP(anti-static glass fibre reinforced polyester SMC) |
Tighten torque of flame-proof enclosure: | 13.5~14 N·m |
Tighten torque of increased saftey enclosure: | 7~10N·m |
External earth stud: | M8 |
Material of enclosure: | aluminum-alloy enclosure and electrostatic powder coated |
CZ Electric Co., Ltd was established in 1990, is a CE81-2 Explosion-proof distribution boxes(electromagnetic starters) suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
Founded in 1990
More than 100 international
explosion-proof certifications
Five production modules
More than 120
patents
More than 50 countries
and regions around the world
CZ1290 Magnetic starter( Motor protection switches + AC contactor module )
CZ1390 Magnetic starter( Motor protection switches + AC contactor module )
