Custom CE31-2 Explosion-proof distribution boxes(circuit breakers) Suppliers, Company

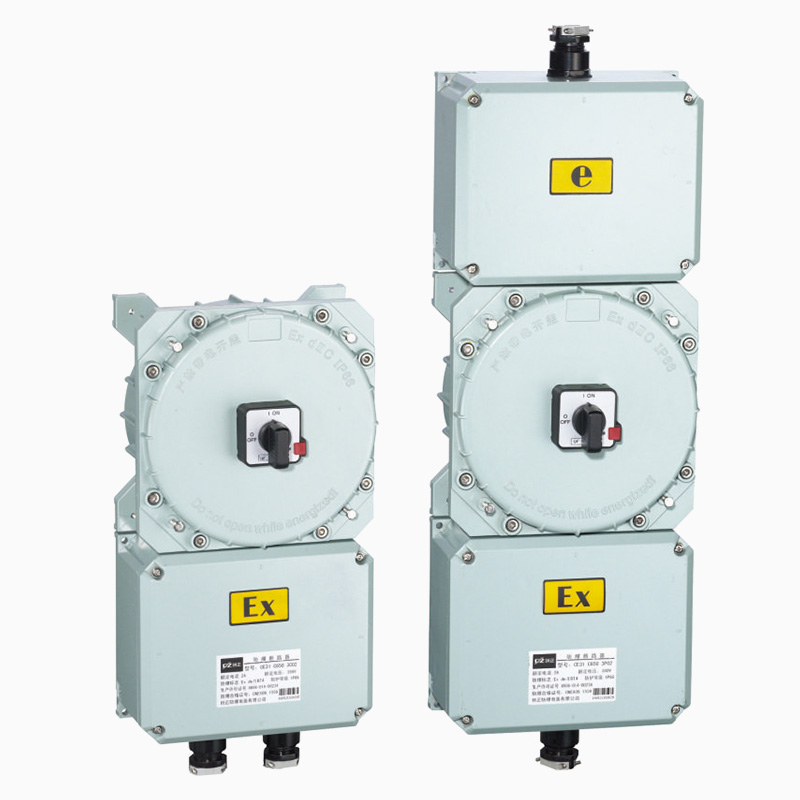

CE31-2 Explosion-proof distribution boxes(circuit breakers)

Prodcuts Features:

● Current up to180A.
● Stainless steel exposed fasteners.
● Pure epoxy resin coated.
● There is an operation mechanism on the panel.
● Degree of protection IP66
● IECEx International Approval, ATEX European Approval

Product Parameter

Product type：	Explosion-proof distribution boxes(circuit breakers)
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1
Min.ambient temperature：	-20℃
Max.ambient temperature：	+55℃
Protection degree：	IP66
Rated voltage：	230V/400V
Rated current：	up to 180A
Material of enclosure：	aluminum-alloy enclosure and electrostatic powder coated

Certification:	China: CNEx16.0812 Ex mark: Ex d e ⅡC T4 Gb / Ex tD A21 IP66 T130℃ IECEx: IECEx CML 18.0063X Ex mark: Ex db eb mb IIB+H2 T6,T5,T4 Gb Ex tb IlIC T80℃,T95℃,T130℃ Db ATEX: CML 18ATEX 1116X Ex mark: Ⅱ2G Ex db eb mb IIB+H2 T6,T5,T4 Gb Ex tb IlIC T80℃,T95℃,T130℃ Db
Intended use:	Can be used in zone 1 and zone 2
Ambient temperature:	-20℃≤Ta≤+40℃/+55℃
Protection degree：	IP66
Rated voltage:	230V/400V
Rated current:	up to 180A
Built-in components:	C65/3P Miniature circuit breaker 1 ~ 63A
Rated on-off capacity:	6 kA, 10 kA
Trip character:	C, D characteristic curve
Rated remained action current:	10, 30, 300mA
Built-in components:	EZD molded case circuit breaker
Rated on-off capacity:	AC400V 35kA
Rated remained action current:	100, 300, 500, 1000mA
Tighten torque of flame-proof enclosure:	13.5~14 N·m ，
Tighten torque of increased saftey enclosure:	7~10N·m
external earth stud:	M8
Material of enclosure:	aluminum-alloy enclosure and electrostatic powder coated

About CZ

CZ Electric Co., Ltd was established in 1990, is a CE31-2 Explosion-proof distribution boxes(circuit breakers) suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
