Product type： |

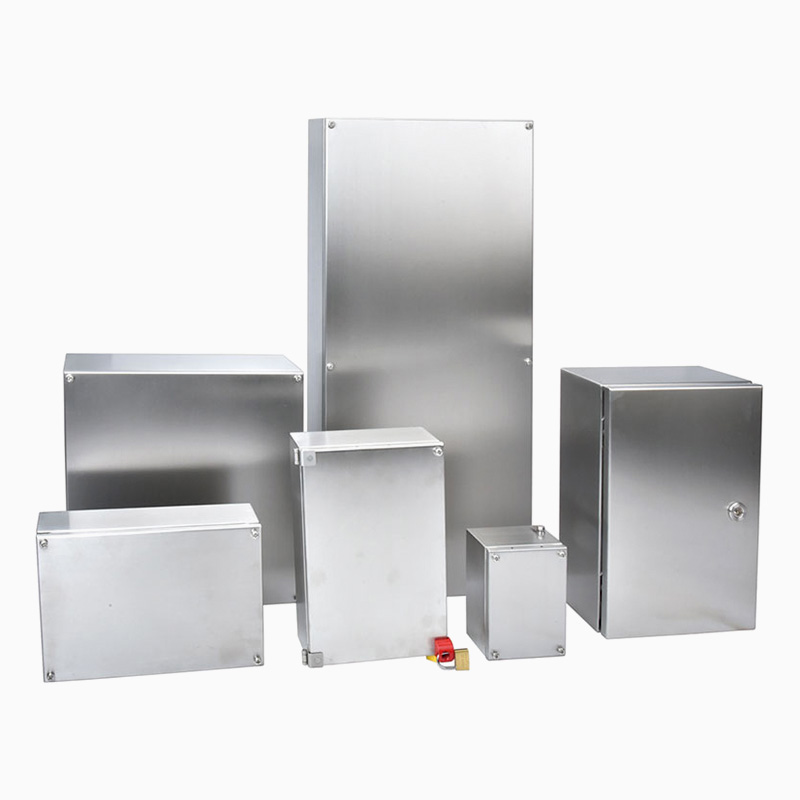

Explosion-proof box |
|
Certification： |
CCC IECEX ATEX |
|
Application range (zones)： |
2G/Gb/zone 1；2Db/Db/zone 21 |
|
Min.operating temperature： |
-40℃( foamed PU seal )、-55℃( silicone seal ) |
|
Max.operating temperature： |
+60℃ ( foamed PU seal )、+100℃( silicone seal ) |
|
Degree of protection： |
IP66 |
|
Impact resistance： |
7J |
|
Earthing： |
M6 |
|
Material： |
SS304/316L (wire drawing processed) Carbon steel ( plastic powder coated) |
| Certification： |
China: CE14.1084U Ex mark: Ex eⅡC Gb DIP A21
IECEx: IECEx CQM 16.0017U Ex mark: Ex ebⅡC Gb Ex tb ⅢC Db
ATEX: Sira 16ATEX3268U Ex mark: Ⅱ2GD Ex ebⅡC Gb Ex tb ⅢC Db
|
| Intended use： | Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22 |
| Working temperature: | -40℃ ~ +60℃ ( foamed PU seal ) -55℃ ~ +115℃ ( silicone seal ) -55℃ ~ +90℃ ( with connection board ) |
| Degree of protection: | IP66 |
| Shock resistance： | 7J |
| Earthing： | M6 |

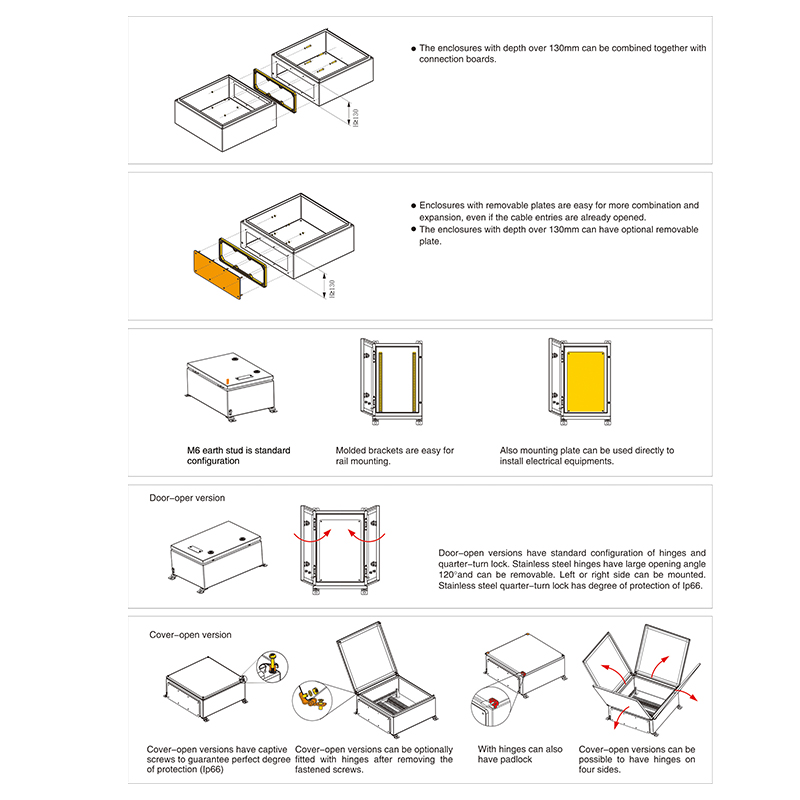

| Internal installation structure forms: | rail bracket or mounting plate |

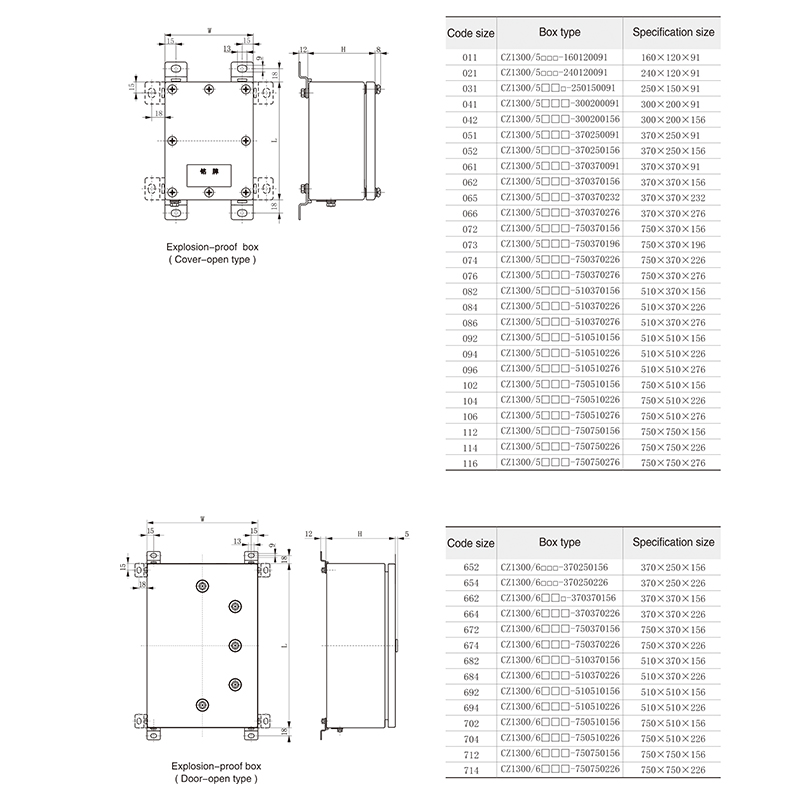

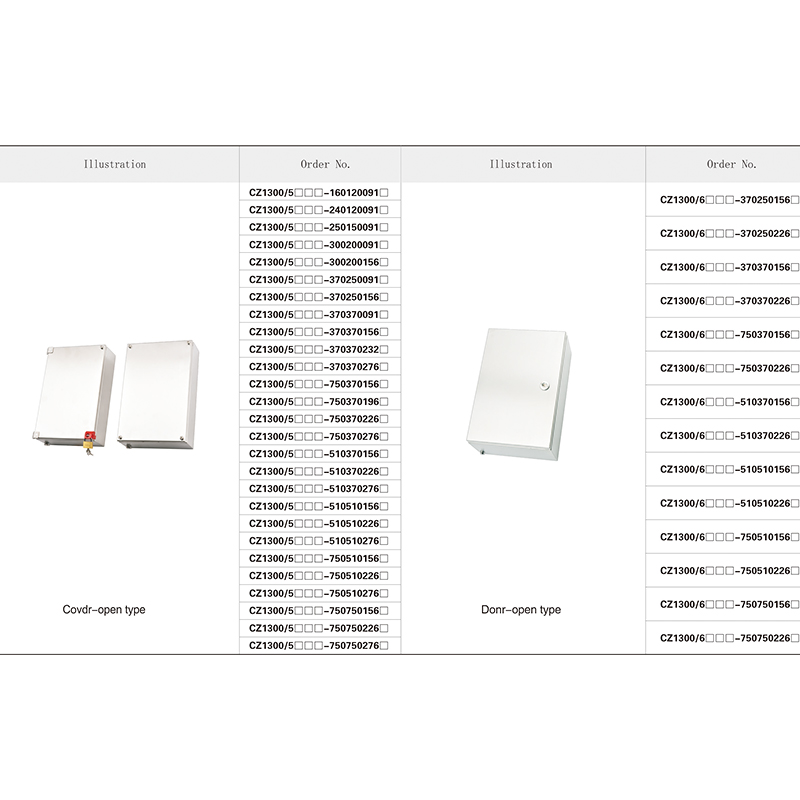

| Box open structure forms: | cover-open type and door-open type |
| Remove plate: | 3mm detachable removable plate |
| Material Thickness : | standard 1.5mm (other customized) |
| Material: | SS304/316L (wire drawing processed) Carbon steel ( plastic powder coated) |
 |

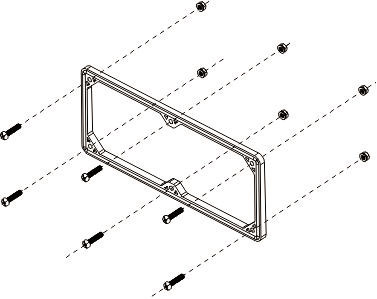

Connecting board
Material: moulded plastic with seals CZ1300-8004
|
 |

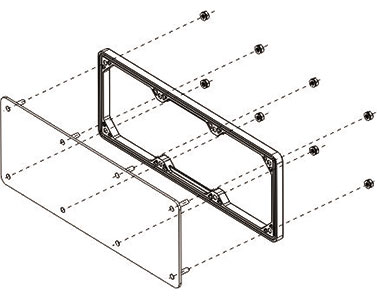

Removable plate
Material: Stainless steel 304 Material: Stainless steel 316L CZ1300-8036
|
 |

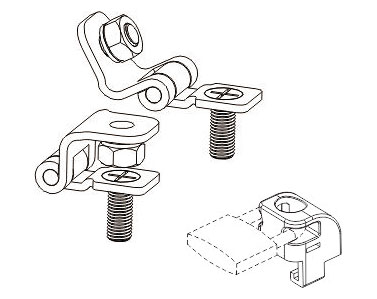

Hinge
Stainless steel hinges for cover-open versions have one padlock per set. CZ1300-8043
|
 |
Molded bracket
4007/TA、4007/TB、4007/TC
|
 |

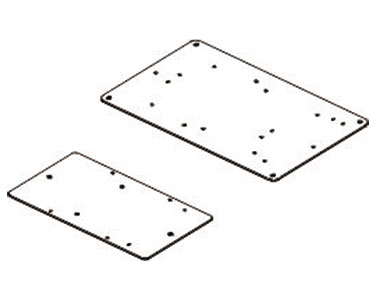

Mounting plate
For mounting electrical components in distribution box 4020/16、4020/17
|
 |

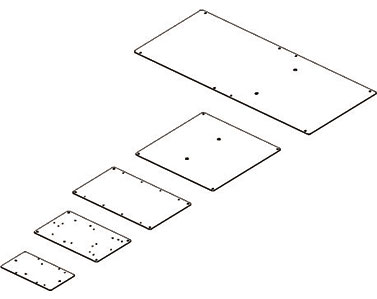

Mounting plate
Material: Stainless steel 4020/6:For 200×150 enclosure 4020/7:For 300×200 enclosure 4020/8:For 370×250 enclosure 4020/9:For 370×370 enclosure 4020/10:For 510×370 enclosure 4020/11:For 510×510 enclosure 4020/12:For 750×370 enclosure 4020/13:For 750×750 enclosure 4020/14:For 750×750 enclosure 4020/6、4020/7、4020/8、4020/9、4020/10、4020/11、4020/12、4020/13、4020/14
|
 |

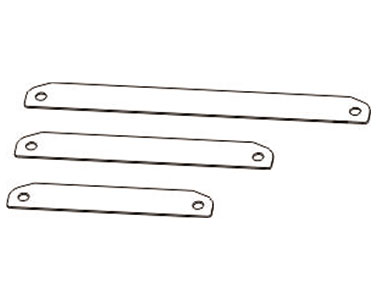

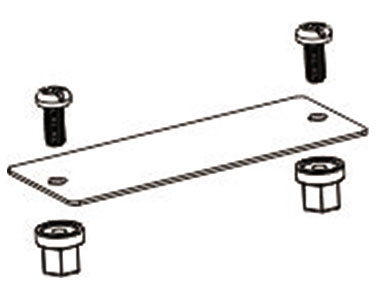

Stainless steel nameplate
Stainless steel nameplate with laser printings, with plastic nuts, self-tapping nuts CZ8040/1-8030A、CZ8040/1-10050A、CZ8040/1-15080A
|
 |
Stainless steel
nameplate CZ8040/1-11720:For box dimension code 011, 021 CZ8040/1-14720:For box dimension code 031 CZ8040/1-19720:For box dimension code 041 CZ8040/1-11720、CZ8040/1-14720、CZ8040/1-19720
|
 |

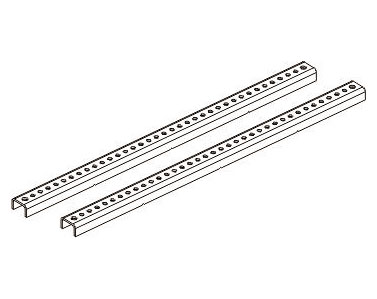

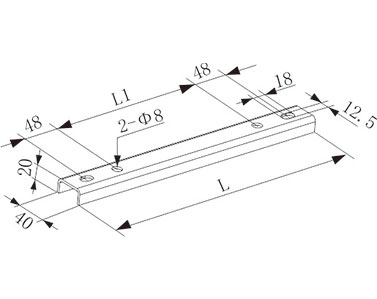

U type rail of stainless steel
Material: Stainless steel 201 5/370-40、U5/490-40、U5/630-40、U5/870-40、
|
