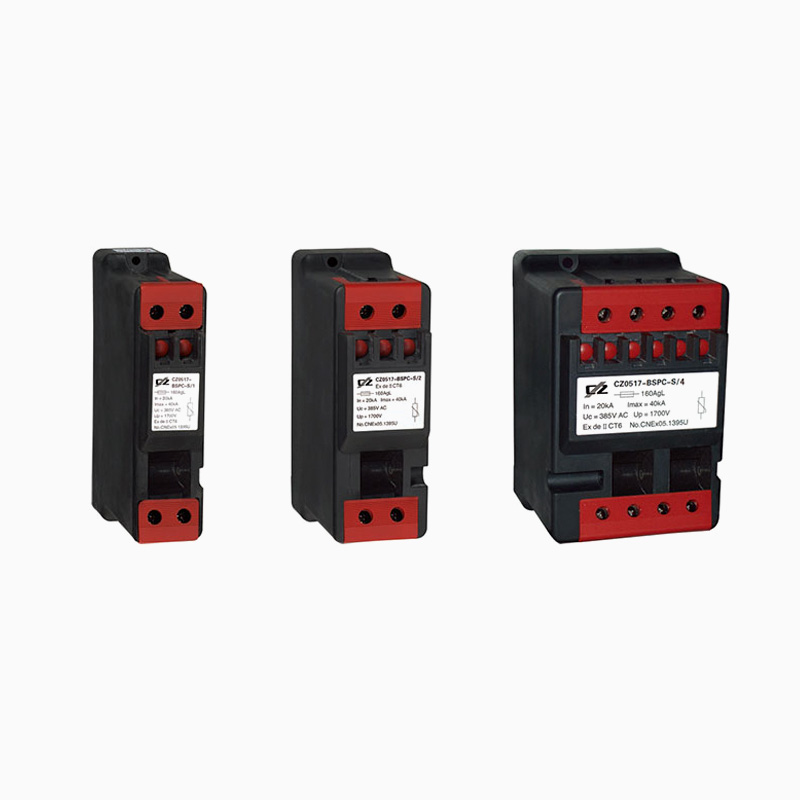

CZ0511 Explosion-proof surge protection device module

Prodcuts Features:

● Ambient temperature: -40℃/-20℃≤Ta≤+60℃
● Non power frequency current, short response time
● Rated discharge current: max. phase 65kA
● Type of test: Category Ⅰ-suitable to surge protection for main incoming of low voltage distribution system.
Category Ⅱ-suitable for second grade protection of load, and cascading of inlets ends of surge protection device.
● Surge protection

Product Parameter

Product type：	Explosion-proof surge protection device module
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1
Min.ambient temperature：	-40℃
Max.ambient temperature：	+60℃
Min.operating temperature：	-40℃
Max.operating temperature：	+110℃
Material of enclosure：	Unsaturated resin

Certification：	China: CNEx16.0838U Ex mark: Ex d eⅡC Gb ( -20℃≤Ta ) Ex d eⅡB Gb ( -40℃≤Ta ) IECEx: IECEx CQM 10.0004U Ex mark: Ex d eⅡC Gb ( -20℃≤Ta ) Ex d eⅡB Gb ( -40℃≤Ta ) ATEX: TUV 14 ATEX 7617U Ex mark: Ⅱ2G Ex d eⅡC Gb ( -20℃≤Ta ) Ex d eⅡB Gb ( -40℃≤Ta )
Intended use:	Can be used in zone 1 and zone 2
Ambient temperature:	-20℃≤Ta≤+60℃ ( ⅡC ) -40℃≤Ta≤+60℃ ( ⅡB )
Operating temperature：	-20℃ ~ +110℃ ( ⅡC ) -40℃ ~ +110℃ ( ⅡB )

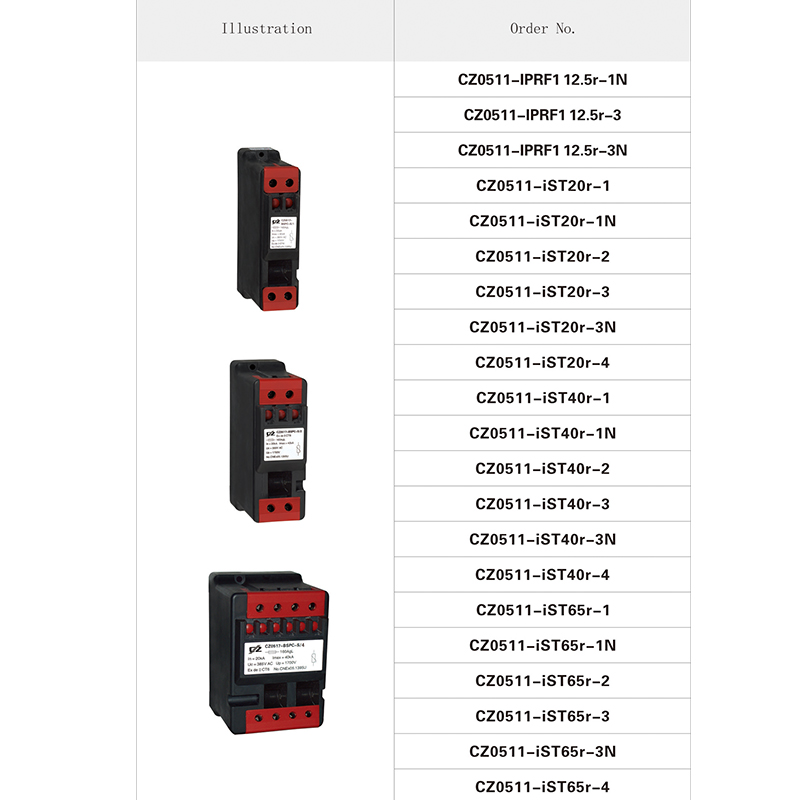

Rated voltage Un:	see ordering table for details
Max continuous operating voltage Uc:	see ordering table for details
Voltage protection level Up(kA)：	see ordering table for details
Max impuluse current Iimp(kA)：	see ordering table for details
Max discharge current Imax(kA):	see ordering table for details
Norminal discharge current In(kA )：	see ordering table for details
Norminal discharge current In(kA )：	see ordering table for details
Type of terminal:	soft wire 2.5 ~ 25mm², hardwire 2.5 ~ 35mm²
Material of enclosure:	Unsaturated resin
