CKX Explosion-proof instrument box module

Prodcuts Features:

● CKX box can be mounted inside of Ex e box to improve its degree of protection, and corrosion resistance
● CKX box can be used separately but with Ex d cable glands.
● CKX box can be used together with Ex d cable bushings or conductive flame-proof shaft.
● Circuit breakers, magnetic starters, big switches and other normal components can be mounted inside. Operation handle is available to mount externally to operate the internal components.
● Measuring instruments can be mounted inside and can be observed from window.

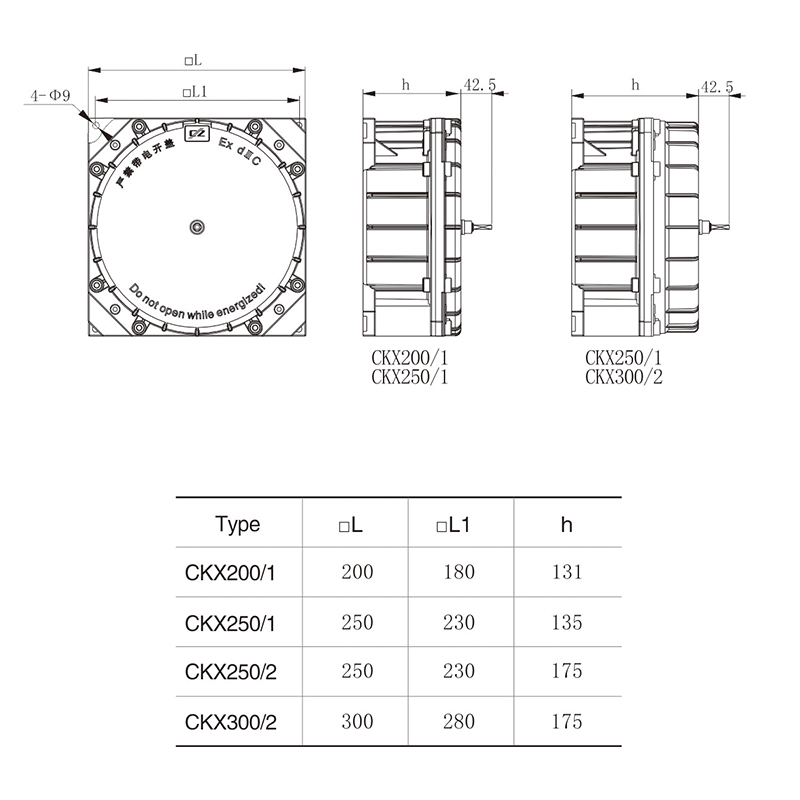

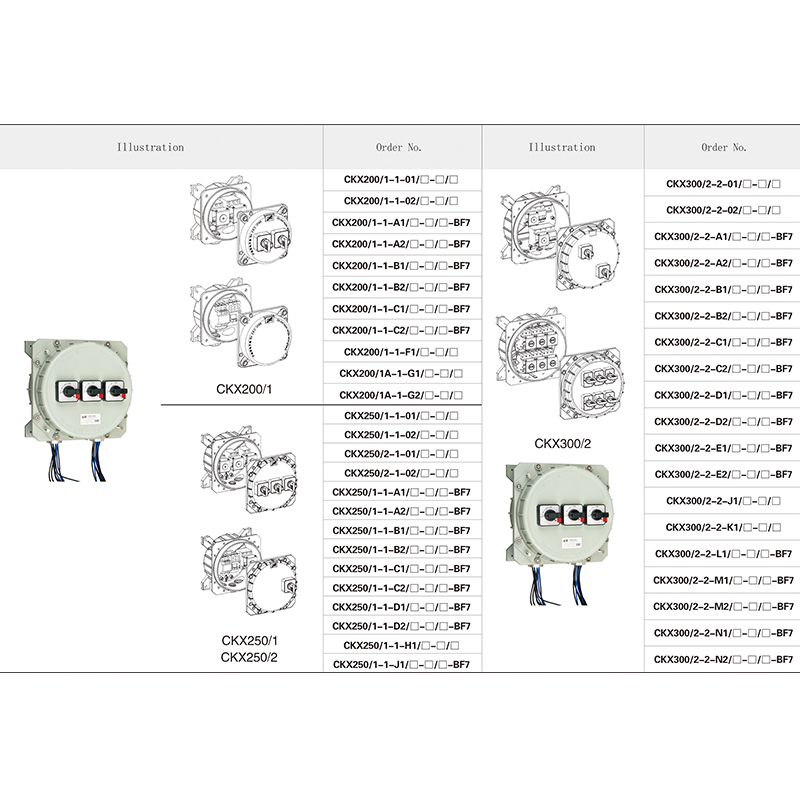

● Four outline dimensions, and seven different specifications.
● Rated voltage: up to 690V.
● Rated current: up to 250A.
● IECEx International certification and ATEX European Approval.

Product Parameter

Product type：	Explosion-proof instrument box module
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1
Min.ambient temperature：	-20℃
Max.ambient temperature：	+60℃
Min.operating temperature：	-20℃
Max.operating temperature：	+110℃
Rated voltage：	Up to 690V
Rated current：	Up to 250A

Certification：	China: CNEx16.1134U Ex mark: Ex d ⅡC Gb / Ex tD A21 IP66 IECEx: IECEx CML 18.0064U Ex mark: Ex db eb ⅡB+H2 Gb Ex tbⅢC Db ATEX: CML 18ATEX 1117U Ex mark: Ⅱ2G Ex db eb ⅡB+H2 Gb Ex tbⅢC Db
Intended use:	Can be used in zone 1 and zone 2
Ambient temperature:	-20℃≤Ta≤+60℃
Operating temperature：	-20℃ ~ +110℃
Rated voltage:	Up to 690V
Rated current:	Up to 250A
Terminals of circuit breaker module：	10 ~ 50mm² ( CKX250 ) 25 ~ 120mm² ( CKX300 )
Material of enclosure:	aluminum-alloy
